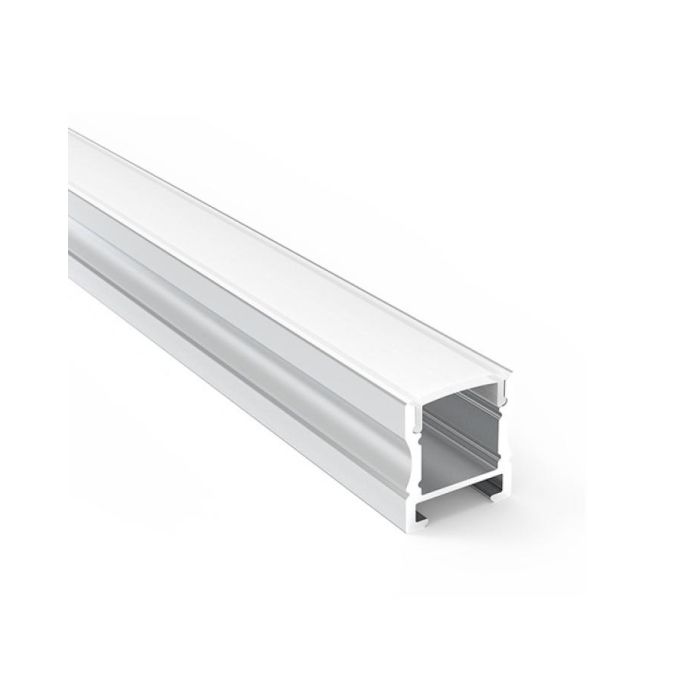

The Surface LED Profiles can be mounted on the ceiling or wall for interior linear lighting. The inner width is 12.3mm and can work with SMD
LED Tapes and COB LED Light Tapes, the max width of LED Strips is 12mm. The adjustable brackets are included, which allows for adjusting the
beam angle. the Surface Mounted LED Profiles are made of 6063-T5 aluminum material with anodized surface treatment, better anti-oxidation,
and a longer lifespan than other similar products. There are three colors available: silver, white and black. The standard length is 1M and 2M, you
can cut to any length you want, and custom length is available. There are 7 types of diffusers available including the black PC cover, all of them
are made of imported brand material, anti-yellowing, and perfect lighting distribution. End caps with holes and without holes are included, easy
to connect the LED Strips to a power supply to light up, if you want to adjust the brightness, you also can add a LED Dimmer. There are magnet
tubes sold separately, you can purchase them separately and install them on the bottom of the Surface Mounting LED Profiles, then you can stick them on the metal part of the door or window.
Features:
Model: ALP146
Material: Extruded Aluminum
Size: 17.1*18.5mm(W*H)
Surface Treatment: Anodized
Colors: Silver(Default), Black, White
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Inner Width: 12.3mm
Max LED Strip Width: 12mm
Max Power: 18W/M
Diffusers: PMMA Opal Matte Cover, PMMA Semi-clear Cover, PMMA Clear Cover, PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, Black PC Cover
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Holes/Without Holes Included
Spring Brackets Included
Installation: Surface Mounted
5 Years Warranty
Includes:
1 set of Surface LED Profile With DIffuser
End Cap (With Hole/End Cap Without Hole)
Adjustable Brackets
CE and RoHS approved
