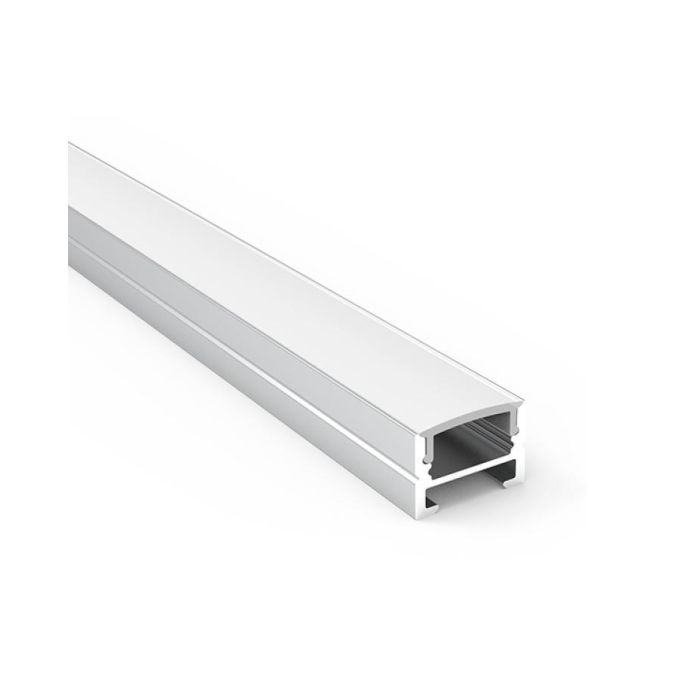

The Surface Mounted Aluminum LED Channel And Diffuser is a great way to provide light for your home or business. Easy to install,
offer a sleek and modern look, and are energy-efficient. They are made of 6063-T5 extruded aluminum material, anti-oxidation resistance,
and a longer lifespan than similar products. The standard length is 1M and 2M and can be cut to any size, and custom lengths are available.
Six types of diffusers are available: the PMMA series and PC series. They are made of brand-imported material, anti-yellowing, and perfect
light distribution, and you can choose the various diffusers for different lighting effects. The inner width is 12.3mm and compatible with the
max-width of LED Strips up to 12mm. It is easy to install the LED Strips inside, and the Aluminum Base can be used as a heat sinker for better
heat dissipation, which allows a longer lifespan for the LED Strips. The bottom of the LED Aluminum Channels has a slot that allows inserting a
magnet tube, and you can stick on the metal part without drilling holes. End caps with holes and without holes make it easy to connect the LED
Lights to a Power Supply to light up. The adjustable clips are included; you can rotate them to adjust the beam angle. There are 90°, 135°, and
180° Connectors sold separately, and you can purchase them for your DIY lighting projects under cabinets, shelves, wardrobes, etc.
Features:
Model: ALP144
Material: Extruded Aluminum
Colors: Silver(Default), Black, White
Size: 11.9*17.1mm(H*W)
Default Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover, PC Semi-Clear Cover, PC Clear Cover
Inner Width: 12.3mm
Max Width Of LED Strips: 12mm
Max Power: 24W/M
Beam Angle: 100°
IP Rating: IP20 Non-waterproof
Magnet Sold Separately
LED Strips Not Included
90° Connector, 90° Vertical Connector, 135° Connector, 135° Vertical Connector And 180° Connector Sold Separately
Tolerance: ±1%
Installation: Surface Mounted
5 Years Warranty
Includes:
1 set of Aluminum LED Channel And Diffuser
End Caps With Hole/Without Hole
Adjustable Clips
CE and RoHS approved
