We supply high quality Skydance Led products to worldwide for many years.
Skydance's products are widely used in various dimming projects such as buildings, hotels, offices, museums, public spaces, outdoor lighting, etc.
These projects include lighting control functions such as dimming, color tempering, adjusting RGB, adjusting RGBW, zoning and
networking, and scene storage, among others.
They have been used in prominent projects, such as China Central Television (CCTV) Headquarters, Lausanne Opera House,
Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.
We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.

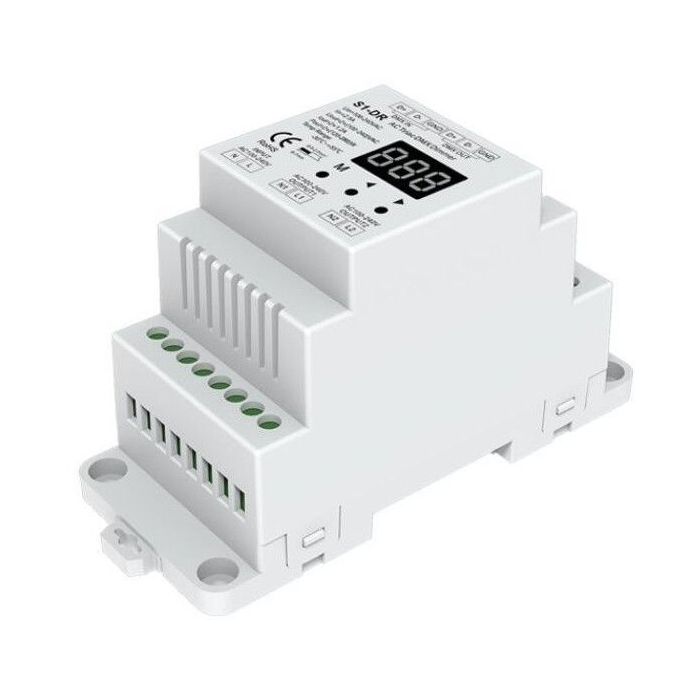

Skydance S1-DR AC100v-240v DIN rail 2 Channel AC Triac DMX Dimmer DMX512 LED Controller is designed with 100-240VAC
input and 100-240VAC output, safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent
and halogen lights.The DMX512 dimmer is designed with standard DMX512 compliant control interface with digital numeric display to set
and show DMX address freely, can be compatible with a variety of DMX512 masters. The AC dimmer is both triac dimmable and mosfet dimmable
and comes with 2 channel output.
Feature
1.AC phase-cut mosfet dimmer with DMX512 function, digital display, two channel output.
2.DMX decode mode / Stand-alone 2 channel dimmer mode / Stand-alone dynamic mode.
3.Standard DMX512 compliant interface, DMX address display, set DMX address freely.
4.RDM bi-directional communication function.
5.Under stand-alone dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.
6.Under stand-alone dynamic mode, have 4 mode.
7.1/2 DMX channel decode optional.
8.Reverse-phase dimming or forward-phase dimming optional.
9.Minimum brightness set from 1% to 40%.
10.To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
11.For S1-DR, din rail or screw mounted optiona
Package Content:
1 Piece of S1-DR Led Controller Skydance Lighting Control System DMX512 LED Controller AC100v-240v DIN rail 2 Channel AC Triac DMX Dimmer
1 Piece of instruction User's Manual
CE and RoHS approved
