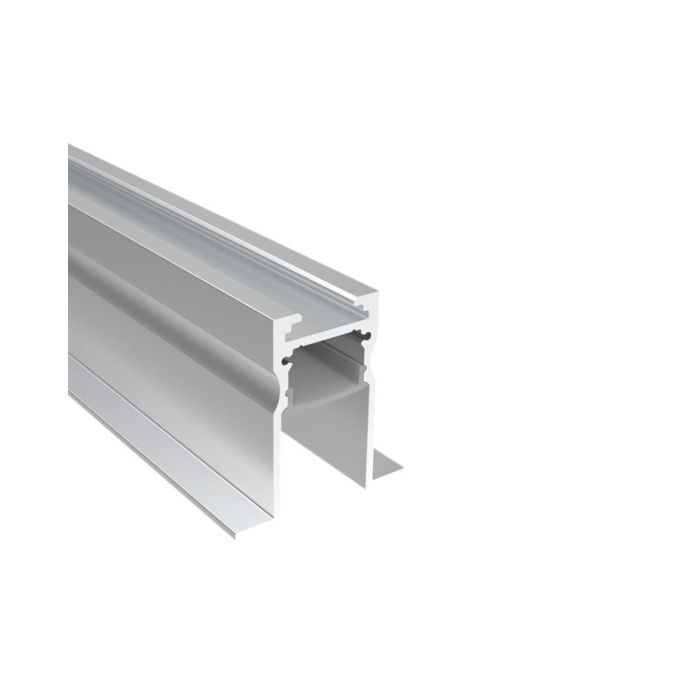

The Recessed LED Strip Profiles, which with low glare design are a great option for creating smooth, even lighting in a variety of
applications. These Light Fixtures are designed to be installed in a ceiling, providing lighting without the glare of other fixtures.
Strip Profiles are designed to work as a heat sinker that helps manage heat dissipation for Rigid LED Strips or Flexible LED Tapes,
made of extruded aluminum material with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than
other similar products. The standard length is 1M and 2M, and custom lengths are available. The inner width is 13.5mm and allows
the max-width of the PCB board to be 13mm. Two types of diffusers are available: PC Diffused Cover and prismatic cover, both of them
are made of imported brand material, anti-yellowing, and perfect lighting distribution. End caps with holes and without holes are included,
the 90° and 180° connectors are sold separately, you can purchase them to design the lighting project for various shapes. The Recessed LED
Profiles are typically flush-mounted for indoor architectural lighting, you can use the spring clips to mount them on the ceiling.
Features:
Model: ALP160
Material: Extruded Aluminum
Surface Treatment: Silver Anodized
Size: 35.9*37mm(W*H)
Colors: Silver(Default), White, Black
Diffusers: Prismatic Cover, PC Diffused Cover
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Inner Width: 13.5mm
Can Work With COB LED Strips And High-Density SMD LED Strips
Tolerance: ±1%
IP Rating: IP20 Non-Waterproof
90°，180° and 90° Vertical Connectors Sold Separately
End Caps With Hole And Without Hole Included
Spring Clips Included
Installation: Recessed Mounting
Application: Architectural Lighting
5 Years Warranty
Includes:
1 set of Recessed LED Strip Profile With Diffuser
1 set of End Caps (With Hole/Without Hole)
Spring Clips
CE and RoHS approved
