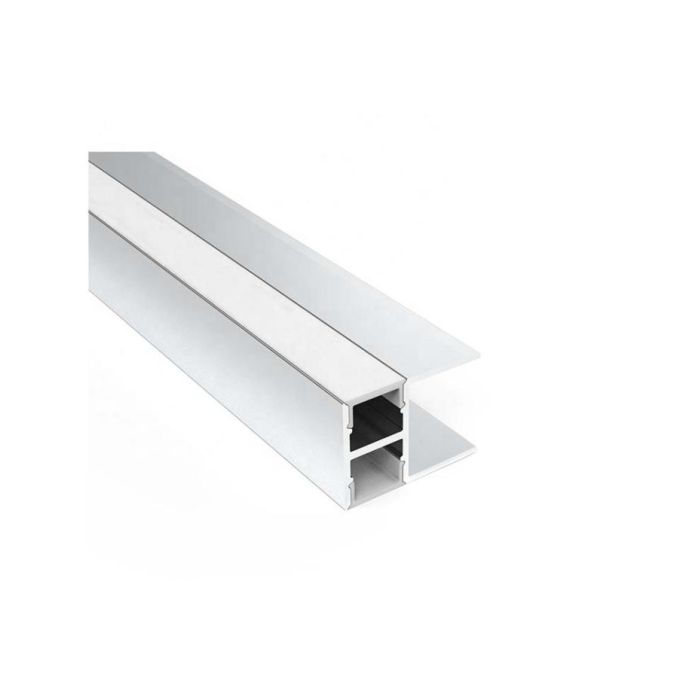

The Recessed LED Extrusion is designed specifically for an 18mm shelf board with up and down lighting design, an
excellent choice to light up shelves, cabinets, and display cases. The standard length is 1M, and the max length is 3
meters per piece; it can be cut to any size for your project. Made of 6063 aluminum alloy with silver anodized surface
treatment, anti-oxidation resistance, and a longer lifespan than similar products. With the LED Light Extrusion with Up
and Down Light Slots design, you can install the LED Strips in the Up and Down directions. The up-and-down lighting
design also allows for a more even, consistent light distribution. The inner width is 10mm and 10.5mm, allowing the
max width of LED Strips to be 10mm. Recommend adding high-density COB LED Strips as the light source, with no
light spots and dark areas. End caps with dual wire holes are included, making it easy to connect to the AC DC
Adaptor to light up. Only one type of diffuser is available: the PC Opal Matte Diffuser, which is made
of brand-stable material, anti-yellowing, perfect light distribution, and smooth light output. With a clip-in design,
which makes installation easy and quick.

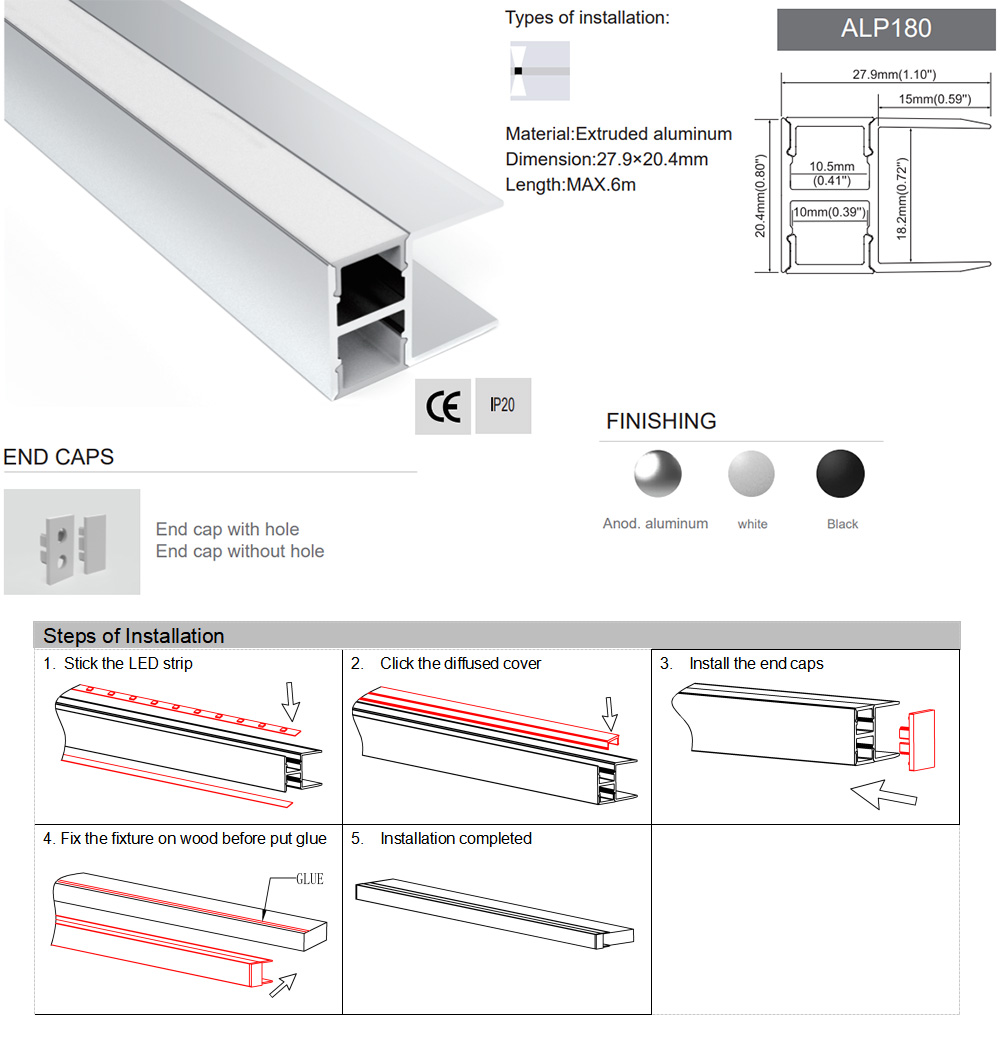

Features:
Model: ALP180
Material: Aluminium Alloy 6063-T5
Surface Treatment: Silver Anodized
Colors: Silver(Default), White, Black
Size: 27.9*20.4mm(W*H)
Inner Width: 10mm And 10.5mm
Allows The Max Width Of LED Strips To Be 10mm
Compatible With 8mm Or 10mm Single Row Flexible LED Strips
Max Power: <15W/M
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M
Custom Length Available: YES
Diffuser: PC Opal Matte Cover(78% Light Transmission)
End Caps With Wire Holes Included
Installation: Recessed
Application: 18mm Shelf Board Under Cabinet / Bookshelves With Lights
5 Years Warranty
Includes:
1 set of Recessed LED Extrusion
End Caps(With Wire Hole And Without Wire Hole)
CE and RoHS approved
