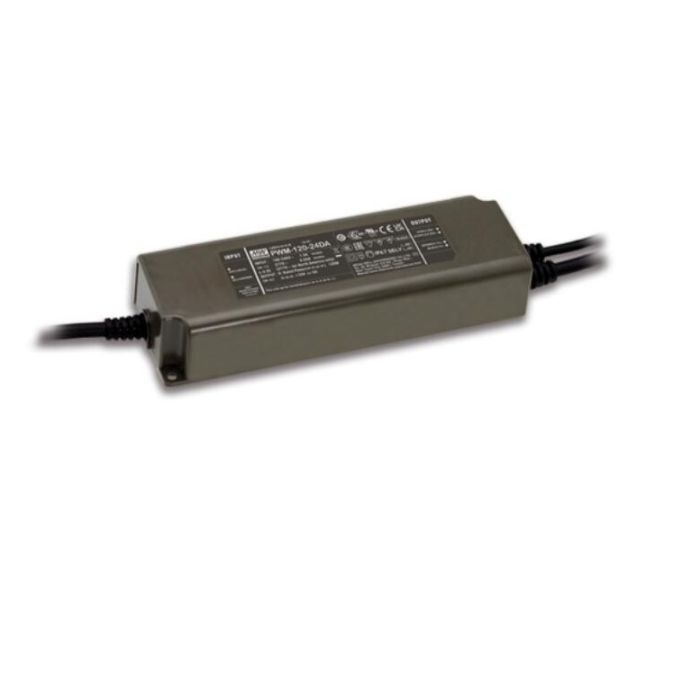

PWM-120 Series Mean Well 120W CV PWM Output Led Driver Power Supply

€30.25
In stock
SKU
PWM-120 Series Mean Well 120W CV PWM Output

For more MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

PWM-120 Series Mean Well 120W CV PWM Output Led Driver Power Supply Driver

Features

Constant voltage PWM style output

 Emergengcy lighting application is available

 according to IEC61347-2-13

Built-in active PFC function and class II design

No load power consumption <0. 5W/ standby power

 consumption <0 5W(DA/DA2-type)

Fully encapsulated with IP67 level

Function options: 3 in 1 dimming (dim-to-off); DALI/DALI-2

Minimum dimming level 0.2% for DALI type

Typical lifetime>50000 hours and 5 years warranty

Description

PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output,

which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of

LED strips. PWM-1 20 operates from 90~ 305V AC and offers models with different rated voltage ranging

between 12V and 48V. Thanks to the high efficiency up to 90. 5%, with the fanless design, the entire series

is able to operate for -40°C ~ +90°C case temperature under free air convection. The entire series is rated

with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-120 is equipped

with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips

applications.

Package Included:

1 Piece of PWM-120 Series Mean Well 120W CV PWM Output Led Driver Power Supply Driver


CE and RoHS approved
