Check the Plasterboard Trimless Recessed Lighting Channel with Diffuser, which can be used for indoor linear LED Lights that need to
be flush mounted into the drywall, the edge of the wall, and the ceiling, enables you to create a diffused line of LED Lights and enclosed
in a protective channel. Recessed Light Channels are made of 6063-T5 extruded aluminum material and with anodized surface treatment,
anti-oxidation resistance, and a longer lifespan. There are three colors available: white, silver, and black colors. The standard length is 1M
and 2M, and custom lengths are available. Two types of diffusers are available: PC diffused cover and PC semi-clear cover, made of brand-imported
material, anti-yellowing, perfect light distribution, and smooth light output. The inner width is 20.7mm and allows the max-width of LED Strips to be
20mm, you can install single row or double rows SMD LED Strips or COB LED Light Strips inside as the light source, Aluminum channel can be worked
as a heat sinker for better heat dissipation. End caps with wire holes are included, easy to connect the LED Strips to the Light Driver to light up or
connect to the Lighting Dimmer to adjust the brightness freely. There are three types of connectors are available, 90°, 90° vertical, and 180° connectors.
You can use them to reconnect the Recessed Plasterboard Lighting Channels together for your projects.
Features:
Model: ALP071-S
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Colors: Silver(Default), White, Black
Size: 49*34.9mm(W*H)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover/PC Semi-clear Cover
Inner Width: 20.7mm(0.81")
Max Width Of LED Strips: 20mm
Max Power: 15W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps With Wire Holes Included

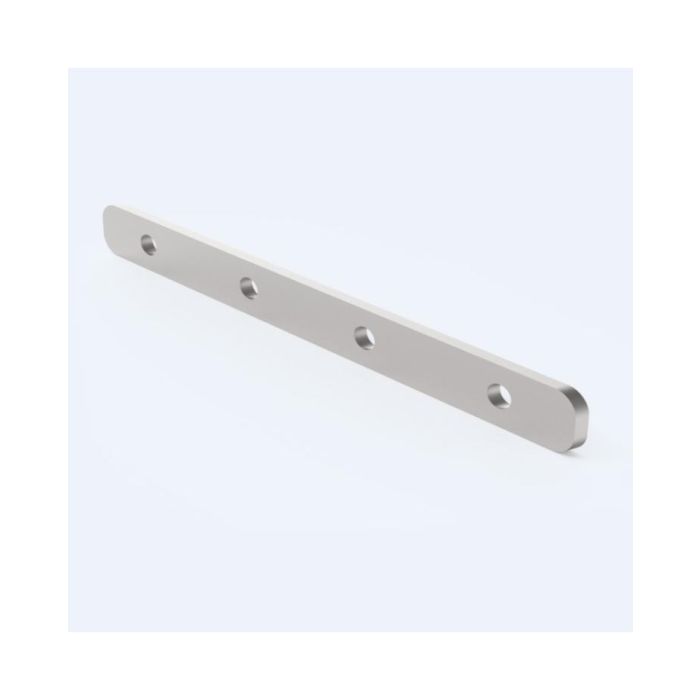

90°, 90° Vertical, 180° Connectors Available
LED Tapes, Dimmers, Controllers, And Transformers Sold Separately
Installation: Recessed
5 Years Warranty
Includes:
1 set of Trimless Recessed Lighting Channel
End Caps(With Wire Hole/Without Wire Hole)
CE and RoHS approved
