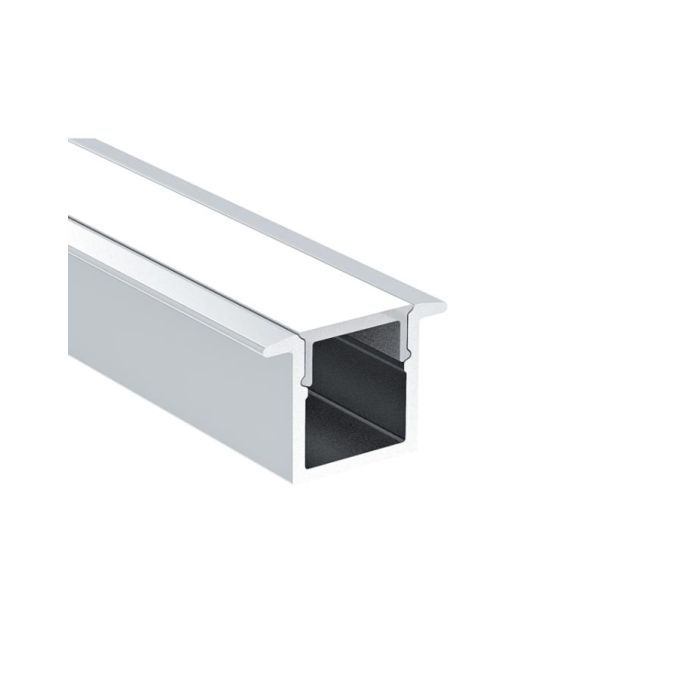

Check the Plasterboard Flush Mounted Aluminium LED Profiles, which can be recessed into the 12.5mm Drywall on the ceiling
and wall. You can recess into the wall or ceiling for indoor linear lighting projects. Flush Mounting LED Profiles are made of
6063-T5 extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other
similar products. 3 colors are available: white, silver, and black colors. The standard length is 1M and 2M, cuttable and custom
lengths are available, the inner width is 10.5mm and allows the max-width of LED Strip Lights to be 10mm. It is easy to install the
LED Lights on the Aluminum Channel Base, and it can work as a heat sinker for better heat dissipation. Recommend installing the
COB LED Strip 24V, with no visible light dots and dark areas, to create seamless linear lighting for indoor decoration. The end caps
with wire holes are included, and they are easy to connect to the 24 Volt LED Drivers to light up. There is only one type of diffuser
available, the PC diffused cover, which is made of imported brand material, anti-yellowing, perfect light distribution, and soft light output.
Features:
Model: ALP068-R4
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Colors: White, Silver(Default), Black
Size: 19.1*14mm(W*H)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10.5mm
Max Width Of LED Strips: 10mm
Max Power: 12W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps With Wires Included
Installation: Recessed
5 Years Warranty
Includes:
1 set of Plaster In LED Profile With Diffuser
End Caps(With WIre Hole And Without Wire Hole)
CE and RoHS approved
