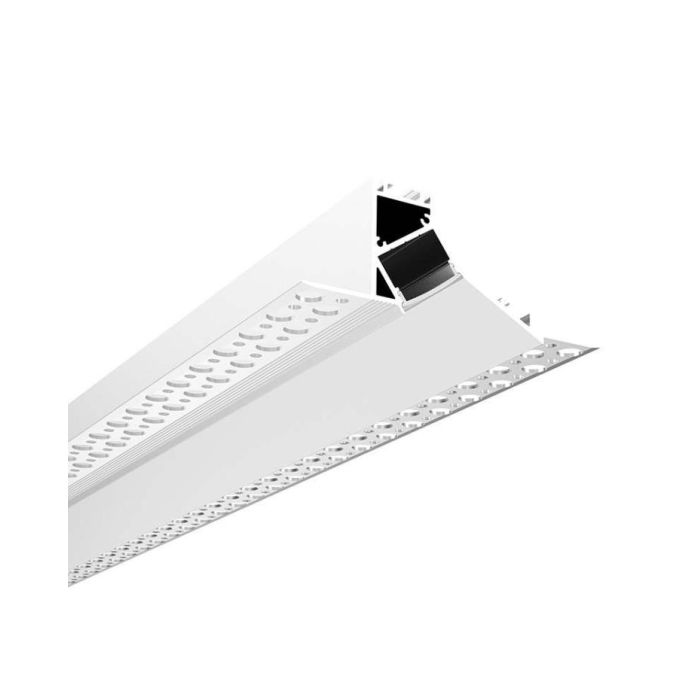

The Aluminum Mounting Channel, which with Inclined lighting design for the drywall wall washer lighting, the extended width
and depth of these Aluminum Channels make for perfect diffusion when using COB Strip Lights. The standard length is 1M and
2M, you can cut to any size for your project. The inner width is 20.7mm and allows the max width of LED Tapes to be 20mm, and
compatible with double rows COB, 3528, 2835, or 5050 12V LED Strip Lights as the light source. Aluminum Channels can be used
as heat sinkers for better heat dissipation, which will extend the lifespan of LED Lights. Wall Washer Channels are made of 6063-T5
aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products.
There are 2 types of diffusers available: the PC diffused cover and the PC semi-clear cover, both of them are made of brand-stable
material, anti-yellowing, perfect light distribution, and smooth light output. There are two rows of honeycomb holes on the flanges,
you could use the screws to fix the Aluminum Channel on the drywall or plasterboard easily.
Features:
Model: ALP126
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Colors: Silver, White, Black
Size: 94.4*34mm(W*H)
Inner Width: 20.7mm
Compatible With Double Rows 3528, 2835, and 5050 12V LED Strip Lights, COB LED Strips
Max Power: <25W/Meter
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover, PC Semi-Clear Cover
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Wire Holes Included
Installation: Drywall Ceiling/Wall Paster-In
Applications: Suit For The Gypsum And Plasterboard For Indoor Occasions
5 Years Warranty
Includes:
1 Set of Aluminum Mounting Channel With Diffuser
End Caps(With Wire Hole/Without Wire Hole)
CE and RoHS approved
