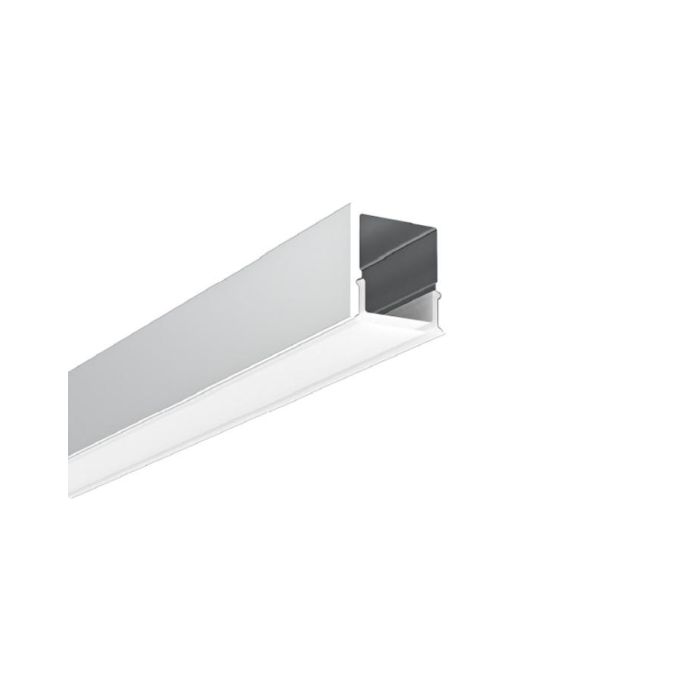

The Plasterboard LED Channel without flange can be mounted on the drywall or plasterboard wall or ceiling. The LED Channels
are made of 6063-T5 extruded aluminum material and have anodized surface treatment, anti-oxidation resistance, and a longer
lifespan than similar products. 3 colors are available: white, silver, and black colors. The standard length is 1M and 2M, and custom
lengths are available. The inner width is 10.5mm and allows the max-width of LED Strips to be 10mm. Easy to install the LED Light
inside and the aluminum base can be worked as a heat sinker for better heat dissipation. Recommend installing the COB LED Strip
Lights, with no visible light dots and dark areas. There are two types of diffusers available, the PC Diffused cover and the black PC
Cover. Both of them are made of brand-imported material, anti-yellowing, perfect light distribution, and soft light output. End caps
with wire holes are included, easy to connect the LED Light to LED Driver to light up, Metal mounting clips are included, and you can
use the screws to fix the LED Plasterboard Channels on the wall or ceiling for indoor lighting projects.
Features:
Model: ALP068-R3
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 13.1*13.7mm(W*H)
Colors: White, Silver(Default), Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover, Black PC Cover
Inner Width: 10.5mm
Max Width Of LED Strips: 10mm
Max Power: 12W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps With Wire Holes And Without Hole Included
Metal Mounting Clips Included
Installation: Surface Mounting(12.5mm Plasterboard)
5 Years Warranty
Includes:
1 set of Plasterboard LED Channeling With Diffuser
End Caps(With Wire Hole And Without Wire Hole)
Meal Mounting Clips
CE and RoHS approved
