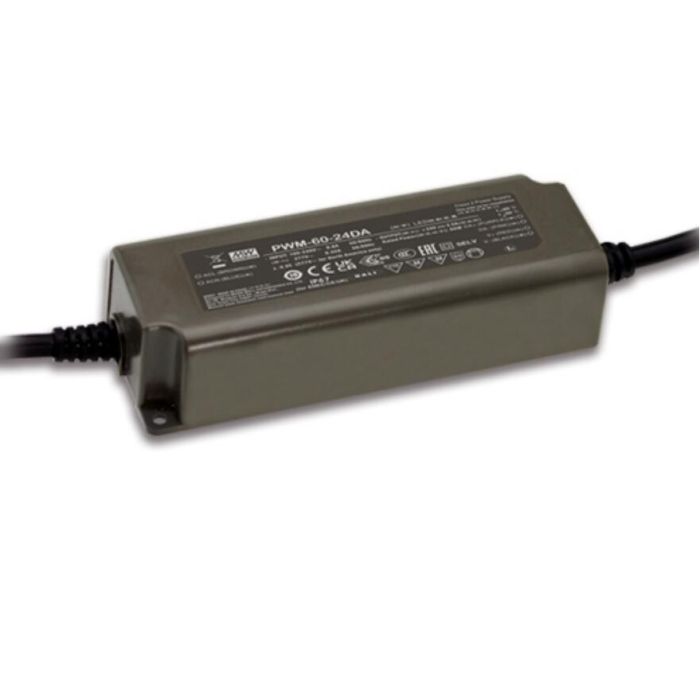

Mean Well PWM-60 Series 60W CV PWM Output Led Power Supply Driver

Features

Constant Voltage PWM style output

Emergency lighting application is available

according to IEC61347-2-13

Built-in active PFC function and class II/2 design

No load power consumption <0 .5W

Fully encapsulated with IP67 level

Function: 3 in 1 dimming(dim-to-off); DALI/DALI-2

Minimum dimming level 0.2% for DALI type

Typical lifetime> 50000 hours and 5 years warranty

Description

PWM-60 series is a 60W LED AC/DC LED driver featuring the constant voltage mode with PWM style

output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.

PWM-60 operates from 90~ 305VAC and offers models with different rated voltage ranging between

 12V and 48V.Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able

to operate for-40°C ~ +85C case temperature under free air convection. The entire series is rated with

IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-60 is equipped

 with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips

applications.

Package Included:

1 Piece of Mean Well PWM-60 Series 60W CV PWM Output Led Power Supply Driver


CE and RoHS approved
