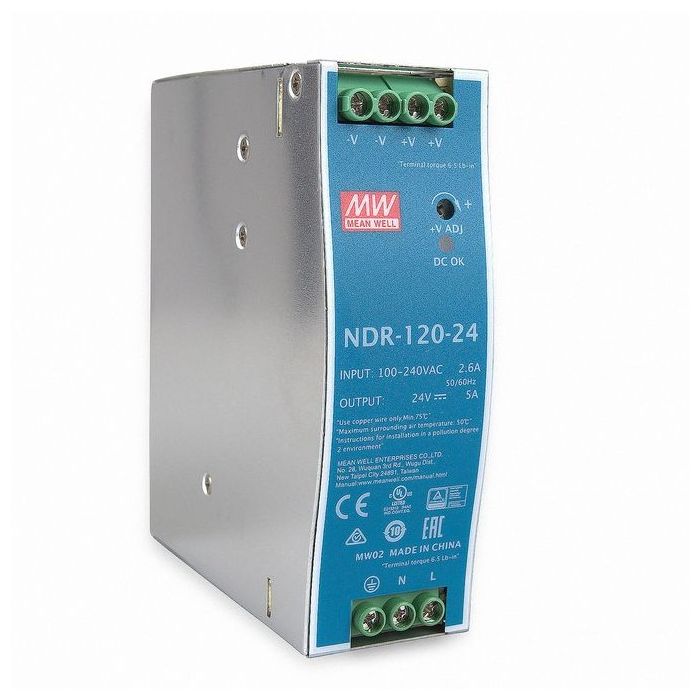

Mean Well NDR-120-24 120W 24V Industrial DIN RAIL

€19.35
In stock
SKU
Mean Well NDR-120-24 120W 24V Industrial DIN

For more MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

2 Years Warranty

Mean Well NDR-120-24 120W 24V Industrial DIN RAIL

Features

Universal AC input / Full range

Protections:Short circuit / Overload / Over voltage
/ Over temperature

Cooling by free air convection

Can be installed on DIN railTS-35/7.5 or 15

UL 508 (industrial control equipment) approved

BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

100% full load burn-in test

switching power supply, DIN mounting, 24V / 10,0A / 240W

switching power supplies with built-in noise filters. Low ripple,

closed design with contact-protected screw. Overload protection by switching off,

auto recovery. Short circuit protection. 100% burn-in test under full load. For DIN rail mounting

Power: 240 W

input: 85 - 264 VAC, 120 - 370 VDC

Output: 24V / 10.0A

Specifications

General temperature max.-10 ... +70 ° C

type switching power supply design

DIN rail

Electrical values ​​

output voltage 24 V DC

current 10 A

input voltage from 85 to 264 VAC power 240 W

input voltage 120 - 370 VDC

efficiency & gt; 84%

inrush current 50 A

ripple 80 mV

embodiment

mounting DIN rail

Special

short-circuit proof yes

overload protection yes

Fittings /

connection screw

Package Included:

1 Piece of Mean Well NDR-120-24 120W 24V Industrial DIN RAIL

2 Years Warranty

CE and RoHS approved
