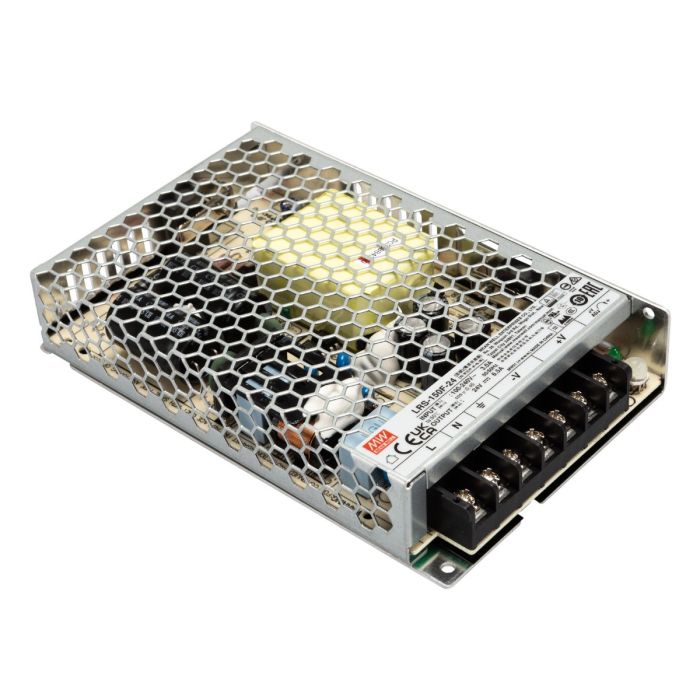

Mean Well LRS-150F-24 24V DC 156W Switching Power Supply

€16.47
In stock
SKU
Mean Well LRS-150F-24 24V DC 156W Switching

For more MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

2 Years Warranty

Mean Well LRS-150F-24 24V DC 156W Switching Power Supply

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5second

No load power consumption<0.5W

Miniature size and 1U low profile

High operating temperature up to 70°C

Protections: Short circuit / Over voltage/Over load/Over temperature

Cooling by free air convection

Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances

Operating altitude up to 5000meters

Withstand 5G vibration test

High efficiency, long life and high reliability

LED indicator for power on

Over voltage category III

100% full load burn-in test

Application

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances

Description

LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design.

dopting the  full range 85~264VAC input, the entire series provides an output voltageline of 12V,

15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat

dissipation of LRS-150 that the whole series operates from -30°C through 70°C under air convenction

without fan.

Delivering an extremely low no load power consumption(less than 0.5W), it allows the end system to easily

meet the worldwide energy requirement. LRS-150F has the complete protection functions and 5G anti-vibration

capability; it is complied with the international safety regulations such as TUV EN62368-1, EN60335-1,

EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply

solution for various industrial applications.

Package Included:

1 Piece of Mean Well LRS-150F-24 24V DC 156W Switching Power Supply

2 Years Warranty

CE and RoHS approved
