Mean Well KNX-20E-640 640mA 30V Switching KNX Power Supply

€65.01
In stock
SKU
Mean Well KNX-20E-640 640mA 30V Switching

For more MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

2 Years Warranty

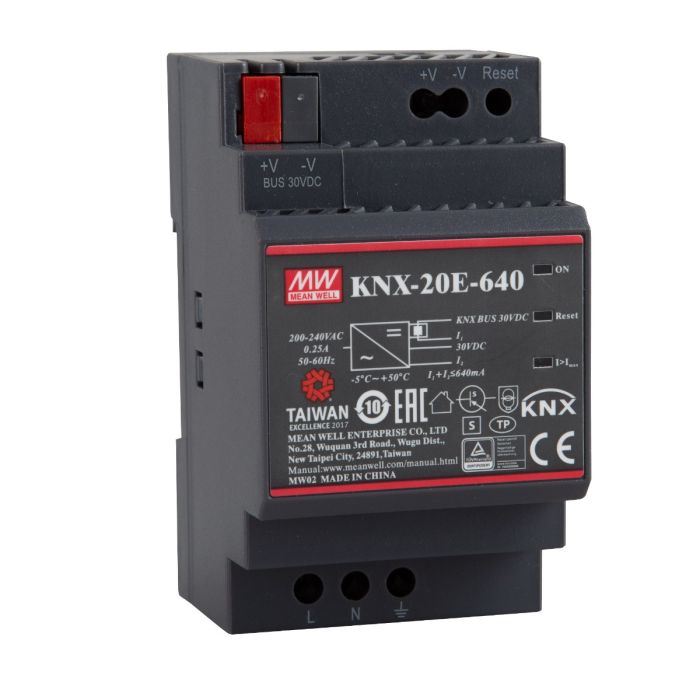

Mean Well KNX-20E-640 640mA 30V Switching KNX Power Supply

KNX-20E-640

Meanwell, KNX-20E-640; Switching power supply 640MA 30V

KNX-20E-640 from meanwell KNX power supply Hutschienen power supply power supply power supply

Performance: 19.2W, constant current: 640mA, output voltage: 30V

KNX driver Length: 90mm, width: 52.5mm, height: 54.5mm

Connection input: screw terminals, connection output: screw clamps

Version DIN -rail

Input 1

Input voltage 47 - 63 Hz

Output current (max.) 640 MA

Output current (max.) - Round 640 MA

phases 1 << BR /> Number of outputs 1 x

ABM. (L x W x H) 54.5 x 52.5 mm

Weight 215 g

height 90 mm

length 54.5 mm

width 52.5 mm

Connection screw terminal /br / > Output type (power supplies) Fixed tension

Heart. KNX-20E-640

Type KNX-20E-640

MTBF 109000 H

Input voltage (nominal) 230 V /AC

Input voltage (max.) 264 V /AC 370 V / DC

Input voltage (min.) 180 V /AC 254 V /DC

operating temperature (max.) 70 ° C

operating temperature (min.) -30 ° C

operating temperature (max. .) (Derating) 50 ° C

operating temperature (min.) (Derating) -30 ° C

output voltage (max.) 30 V /DC

output voltage (min.) 30 V /DC

Output voltage (nom.) 30 V /DC

Power 19.2 W

Output voltage 30 V /DC

Product-Art Hutschienen power supply (DIN-Rail)

Package Included:

1 Piece of Mean Well KNX-20E-640 640mA 30V Switching KNX Power Supply

2 Years Warranty

CE and RoHS approved
