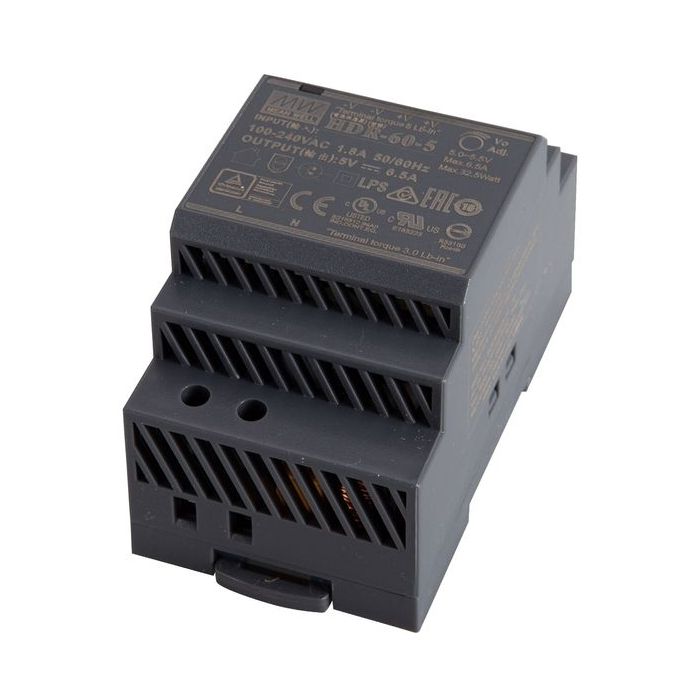

Mean Well HDR-60-5 5V DC Ultra Slim Step Shape Rail
Manufacturer: Mean Well
Article R.: HDR-60-5
Types: DIN rail assembly single output 1-phase Power: 60W
Description: Even smaller and more powerful than the first generation (DR- Series) on the top rail
power supplies (DIN-Rail) in the plastic housing is the new HDR series from Mean Well. In the building
automation and house control in particular, the power supplies with 60W (HDR-60) are used, which correspond
to protection class II. Mean Well's HDR family has a gradual plastic housing, has an input voltage range
from 85 to 264VAC (also available 277VAC) and offers models with 5V, 12V, 15V, 24V and 48V. Thanks to the
slim design, the height only measures 90mm, the width 3SU (52.5mm. They can be assembled on the standardized
Hutschienen TS-35/7.5 and TS-35/15. Their properties also include low idle consumption of <0 , 3W, a high
efficiency up to 91% and an adjustable DC output voltage as well as a wide working temperature range (-30 to +70 ° C).
There is also an LED display for operation. The HDR series from Mean Well meets the European standard DIN EN43880,
the regulation of the European Union for OberwelleTstrom according to EN61000-3-2 class A as well as all
safety regulations according to UL60950-1, UL508 and EN61558-2-16. 32.5 W
Dimensions Mm: 54.5 mm
Dimensions Mm: 90 mm
Dimension polluting mm: 52.5 mm
Protection type:
Protection class: II
Equipment: Can be assembled directly on the DIN rail · Closed design, touched screw connections
· Universal entrance · ÜB Experience protection by current limitation, car recovery · Protected against short circuit,
overload, overvoltage · Low idle display · LED display for power-on · Isolation class II
Connections: screw terminals
Number of outputs: 1
Number inputs: 1
version:
output voltage max.: 5.5 V /DC
output voltage min.: 5 V /DC
output current max.: 6.5 a
output current min. :
Operating voltage:
Entrance voltage max: 264 V /AC
Input voltage min: 85 V /AC
Package Included:
1 Piece of Mean Well HDR-60-5 5V DC Ultra Slim Step Shape Rail
2 Years Warranty
CE and RoHS approved
