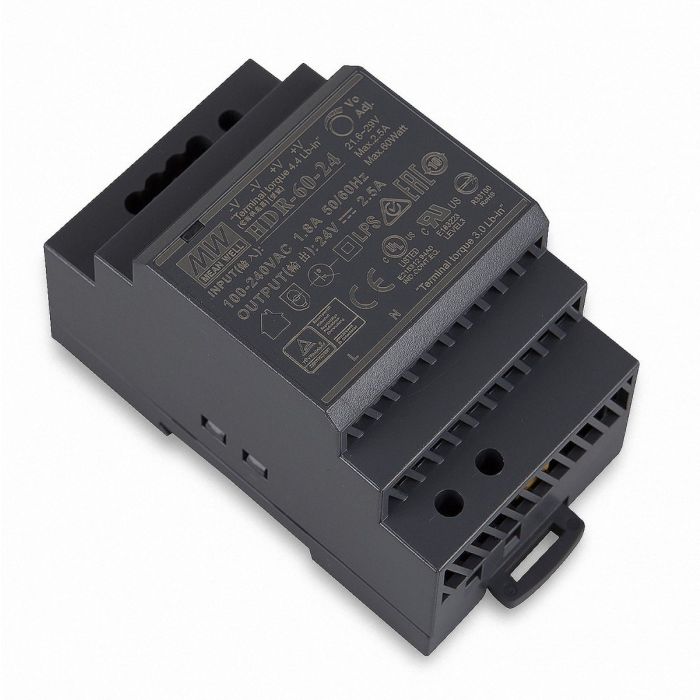

Mean Well HDR-60-24 24V DC 60W Ultra Slim Step Shape DIN Rail
Manufacturer: Mean Well
Item No .: HDR-60-24
types: DIN rail mounting Single Output 1-phase power: 60W Description: Even smaller and
more efficient than the first generation (DR series) to DIN rail power supplies (DIN-rail)
in the plastic housing is the new series of HDR Meanwell. In particular, in the building automation
and home control the power supply of 60W (HDR-60) are used, correspond to the class II. The HDR family
of Mean Well has a step-shaped plastic housing has an input voltage range of 85 to
264VAC (277VAC also available) and offers models with 5V, 12V, 15V, 24V and 48V. Thanks to slim design,
the height measures only 90mm, the width 3SU (52.5 mm. They can be on the standardized
DIN rail TS-35 / 7.5 and TS 35/15 install. Its properties also include a low-load power consumption
of <0 , 3W, a high efficiency of up to 91%, and an adjustable DC output voltage and a broader operating
temperature range (-30 to +70 ° C). also, an LED display for the operation is provided. the HDR series
of Meanwell fulfills the . European standard DIN EN43880, the rules of the European Union for harmonic
current according to EN61000-3-2 class A and all safety specifications to UL60950-1, UL508 and EN61558-2-16
Features: Adjustable
Leistungmax .: 60 W
AbmessungBreitein mm 54.5 mm
AbmessungHöhein mm: 90 mm
AbmessungLängein mm 52.5 mm
protection:
protection class II Search facilities: directly on the DIN rail mountable · enclosed case, Touch screw
· Universal input · Ov erlastschutz, current limiting, auto recovery · protected against short circuit,
overload, over voltage · low idle power · LED indicator for power on · Insulation class II
Connections: screw
Number of outputs: 1 | Number of inputs: 1
version:
Ausgangsspannungmax .: 29 V / DC
Ausgangsspannungmin .: 21.6 V / DC
output current max .: 2.5 A output current
min .:
operating voltage:
input voltage Max: 264 V / AC
input voltage min: 85 V / AC
Package Included:
1 Piece of Mean Well HDR-60-24 24V DC 60W Ultra Slim Step Shape DIN Rail
2 Years Warranty
CE and RoHS approved
