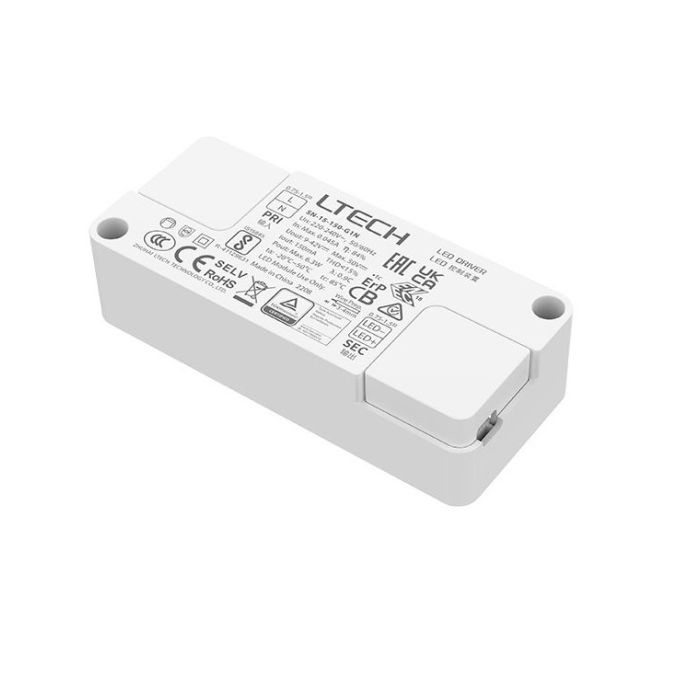

Ltech SN-15-220-G1N SN-15-200-G1N SN-15-180-G1N SN-15-150-G1N Non-dimmable CC LED Driver
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
The housing is made from V0 flame retardant PC materials.
Ultra-small, thin and light screwless end cap. High performance, high efficiency, low THD.
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overvoltage, overload, short circuit protection and automatic recovery.
Suitable for ClassI/II/III indoor light fixtures.
Indoor office lighting, decorative lighting and commercial lighting.
SN-15-350-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥87% at full load
Power Factor: PF>0.95 at full load
Output Voltage: 9-42Vdc
Output Current: 350mA
Output Power: 3.15W-14.7W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
SN-15-300-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥87% at full load
Power Factor: PF>0.95 at full load
Output Voltage: 9-42Vdc
Output Current: 300mA
Output Power: 2.7W-12.6W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
SN-15-250-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥86% at full load
Power Factor: PF>0.9 at full load
Output Voltage: 9-42Vdc
Output Current: 250mA
Output Power: 2.25W-10.5W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
SN-15-220-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥86% at full load
Power Factor: PF>0.9 at full load
Output Voltage: 9-42Vdc
Output Current: 220mA
Output Power: 1.98W-9.24W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
SN-15-200-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥86% at full load
Power Factor: PF>0.9 at full load
Output Voltage: 9-42Vdc
Output Current: 200mA
Output Power: 1.8W-8.4W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
SN-15-180-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥85% at full load
Power Factor: PF>0.9 at full load
Output Voltage: 9-42Vdc
Output Current: 180mA
Output Power: 1.62W-7.56W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
SN-15-150-G1N
Input Voltage: 220-240Vac
PWM Frequency: Non dimming
Output Type: Constant Current
Output Feature: Isolation
Protection Grade: IP20
Efficiency (Typ.): ≥84% at full load
Power Factor: PF>0.9 at full load
Output Voltage: 9-42Vdc
Output Current: 150mA
Output Power: 1.35W-6.3W
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS
Warranty: 5 years
Package Included:
1 Piece of Ltech Non-dimmable CC LED Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
