Ltech SE-9-350-700-G1T SE-12-100-400-G1T SE-15-350-700-G1T 9W 350-700mA Triac Driver Led Controller Dimmer Decoder
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the
0.5-1.5mm2wire diameter 60N tensile test, and complies with the tensile test standard GB7000.1- 2015/IEC60598-1:2014.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting.
Dimming from 0~100%, down to 0.01%.
0-100% flicker-free dimming with high frequency exemption level. Innovative thermal management technology protects the power life intelligently.
Multi-current & wide voltage, suitable for different power LEDs. Class 2 LED driver, full protective plastic housing.
Comply with Safety Extra Low Voltage standard.
Overvoltage, overload, short circuit protection and automatic recovery. Suitable for indoor light applications ofI/II/IIItype.
Up to 50000-hour life time.

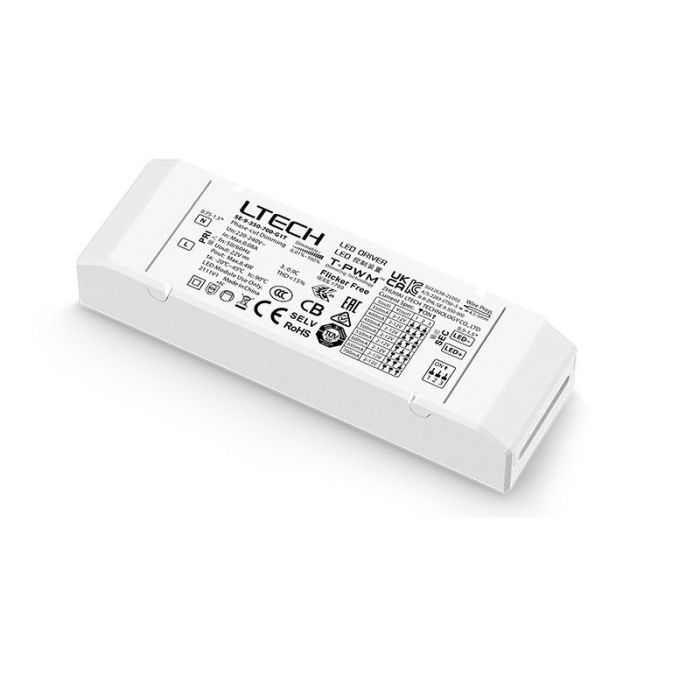

SE-9-350-700-G1T
Rubycon capacitor
Dimming interface: Triac leading edge/ELV trailing edge
Input voltage: 220-240Vac
Power Factor: PF>0.9/230Vac (Foll load)
Efficiency(typ.): >70%@700mA
Strobe Level: No visible flicker/High frequency exemption level
Output Voltage: 2-12Vdc
Output Current: 350-700mA
Output Power: 0.7W-8.4W
Dimming range: 0~100%, down to 0.01%
Certification: CCC,TUV,RCM,CB,CE,EMEC,KC,EAC,UKCA
Warranty: 5 years
Sec. output:
|
Pout(Max.)
|
Vout(DC)
|
Constant(DC)
|
|
0.7-4.2W
|
2-12V
|
350mA
|
|
0.8-4.8W
|
2-12V
|
400mA
|
|
0.9-5.4W
|
2-12V
|
450mA
|
|
1-6W
|
2-12V
|
500mA
|
|
1.1-6.6W
|
2-12V
|
550mA
|
|
1.2-7.2W
|
2-12V
|
600mA
|
|
1.3-7.8W
|
2-12V
|
650mA
|
|
1.4-8.4W
|
2-12V
|
700mA
|
SE-12-100-400-G1T
Rubycon capacitor
Dimming interface: Triac leading edge/ELV trailing edge
Input voltage: 220-240Vac
Power Factor: PF>0.9/230Vac (Foll load)
Efficiency(typ.): >78%@300mA
Strobe Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 100-400mA
Output Power: 0.9W-12W
Dimming range: 0~100%, down to 0.01%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ERP,ROHS
Warranty: 5 years
Sec. output:
|
Pout(Max.)
|
Vout(DC)
|
Constant(DC)
|
|
0.9-4.2W
|
9-42V
|
100mA
|
|
1.35-6.3W
|
9-42V
|
150mA
|
|
1.8-8.4W
|
9-42V
|
200mA
|
|
2.25-10.5W
|
9-42V
|
250mA
|
|
2.7-12W
|
9-40V
|
300mA
|
|
3.15-11.9W
|
9-34V
|
350mA
|
|
3.6-12W
|
9-30V
|
400mA
|
SE-15-350-700-G1T
Rubycon capacitor
Dimming interface: Triac leading edge/ELV trailing edge
Input voltage: 220-240Vac
Power Factor: PF>0.9/230Vac (Foll load)
Efficiency(typ.): >80%@350mA
Strobe Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 350-700mA
Output Power: 3.1W-15W
Dimming range: 0~100%, down to 0.01%
Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ERP,ROHS
Warranty: 5 years
Sec. output:
|
Pout(Max.)
|
Vout(DC)
|
Constant(DC)
|
|
3.15-14.7W
|
9-42V
|
350mA
|
|
3.6-15W
|
9-37.5V
|
400mA
|
|
4.05-14.85W
|
9-33V
|
450mA
|
|
4.5-15W
|
9-30V
|
500mA
|
|
4.95-14.85W
|
9-27V
|
550mA
|
|
5.4-15W
|
9-25V
|
600mA
|
|
5.85-14.95W
|
9-23V
|
650mA
|
|
6.3-15.05W
|
9-21.5V
|
700mA
|
Package Included:
1 Piece of Ltech 9W 350-700mA Constant Current Triac Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
