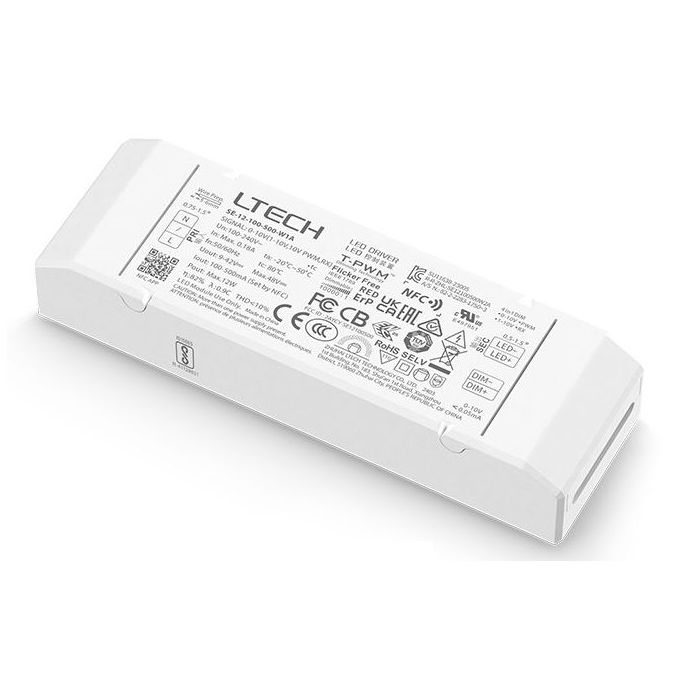

Ltech SE-12-100-500-W1A NFC CC 0/1-10V LED Driver Controller

€11.53
In stock
SKU
Ltech SE-12-100-500-W1A NFC CC 0/1-10V LED Driver Controller
  • Buy 50 for €11.07 each and save 4%

For more 0/1-10V Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Ltech SE-12-100-500-W1A NFC CC 0/1-10V LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

Ultra small, thin and lightweight, screwless end cap.

Change the output current, dimming mode and other parameters via the APP.

Adjustable output current with 1mA step.

Automatically recognize 0-10V and 1-10V input signal.

Ultra-low consumption of 0-10V ports < 0.05mA.

Soft-on and fade-in dimming function enhances your visual comfort.

T-PWMTM super deep dimming technology, 0.01% dimming depth.

The whole dimming process is flicker-free with high frequency exemption level.

Comply with the EU’s ErP Directive, networked standby<0.5W.

When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.

Overheat, over voltage, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Normal service life can reach 100000 hours.


Dimming Interface:    0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA

Input Voltage:    100-240Vac

Power Factor:     PF>0.97/115Vac , PF>0.85/230Vac, at full load

Efficiency:    81%

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    10-24Vdc

Output Current:    350-700mA

Output Power:    3.5W~12W

Dimming Range:    0~100%, 0.01% dimming depth.

Certification:    CCC,CB,CE,RCM,TUV,BIS,UKCA,ROHS

Warranty:    5 years

Package Included:

1 Piece of Ltech SE-12-100-500-W1A NFC CC 0/1-10V LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
