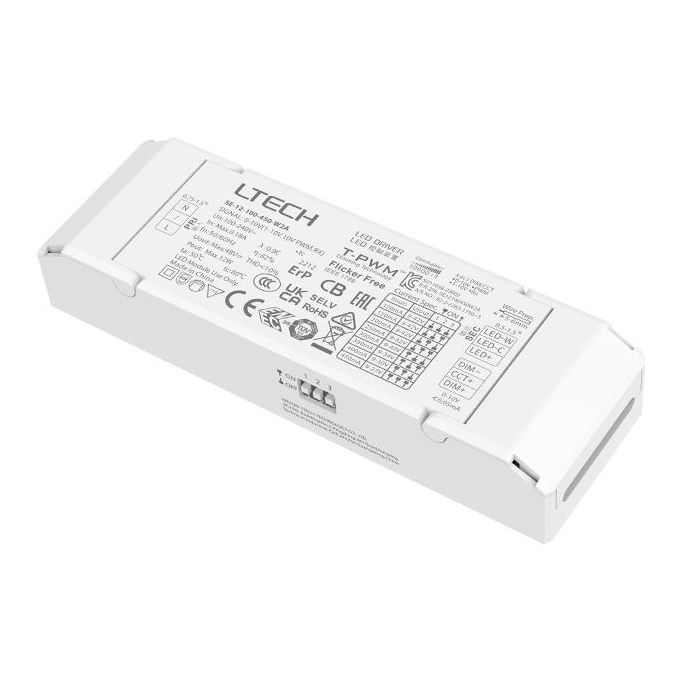

Ltech SE-12-100-450-W2A CC 0-10V Tunable White Led Controller Driver

€12.23
In stock
SKU
Ltech SE-12-100-450-W2A CC 0-10V Tunable White LED Driver
  • Buy 50 for €11.74 each and save 4%

For more 0/1-10V Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Ltech SE-12-100-450-W2A CC 0-10V Tunable White Led Controller Driver Control Dimmer Decoder

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V (1-10V/10VPWM/RX)

T-PWMTM dimming technology allows continuous and flicker-free images under high-speed photography.

With soft-on and fade-in dimming function, enhancing your visual comfort.

Automatically recognize 0-10V and 1-10V input signal.

DIP switch fast multi gear current selection

Dimming from 0~100%, down to 0.1%.

The whole dimming process is flicker-free with high frequency exemption level.

Ultra-low consumption of 0-10Vports:<0.05mA.

Innovative thermal management technology, intelligentpower life protection.

Over-heat / Over load / Short circuit protection, recover automatically.

Suitable for internal lights application for I/II/III.

Up to 50000-hour life time.


Dimming Interface:    0-10V(1-10V/10V PWM/RX)

Input Voltage:    100-240Vac

Power Factor:     PF>0.95/115Vac, at full load PF>0.9C/230Vac, at full load

Efficiency:    82%, at full load

Fluctuation Level:    No video flicker / High frequency exemption assessment level.

Output Voltage:    9-42Vdc

Output Current:    100-450mA

Output Power:    0.9W-12W

Dimming Range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,BIS,EAC,UKCA,ROHS

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant(DC)

0.9-4.2W

9-42V

100mA

1.35-6.3W

9-42V

150mA

1.8-8.4W

9-42V

200mA

2.25-10.5W

9-42V

250mA

2.7-12W

9-40V

300mA

3.15-11.9W

9-34V

350mA

3.6-12W

9-30V

400mA

4.05-12.15W

9-27V

450mA



Package Included:

1 Piece of Ltech SE-12-100-450-W2A CC 0-10V Tunable White LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
