Ltech SE-10-350-700-W1M SE-12-100-400-W1M SE-12-350-700-W1M Dmx Controller Driver Decoder Control Dimmer
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price

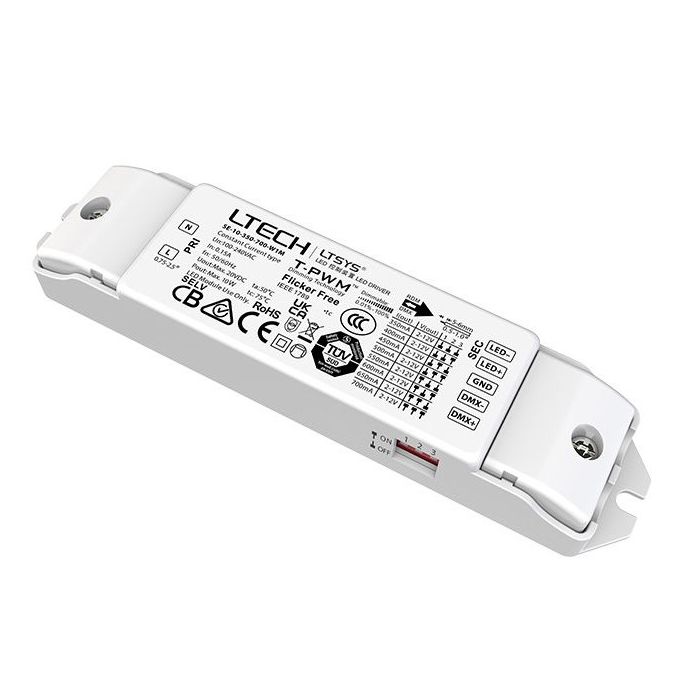

SE-10-350-700-W1M
Rubycon capacitor
Dimming Interface: DMX512/RDM
Input Voltage: 100-240Vac Max. 265Vac
Power Factor: PF>0.95/115Vac , PF>0.80/230Vac,at full load
Efficiency: 75%
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 2-12Vdc
Output Current: 350-700mA
Output Power: 0.7W~8.4W
Dimming Range: 0~100%, 0.01% dimming depth.
Certification: CCC,CB,CE,RCM,TUV,UKCA,ROHS
Warranty: 5 years
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
0.7-4.2W 2-12V 350mA
0.8-4.8W 2-12V 400mA
0.9-5.4W 2-12V 450mA
1-6W 2-12V 500mA
1.1-6.6W 2-12V 550mA
1.2-7.2W 2-12V 600mA
1.3-7.8W 2-12V 650mA
1.4-8.4W 2-12V 700mA
SE-12-100-400-W1M
Rubycon capacitor
Dimming Interface: DMX512/RDM
Input Voltage: 100-240Vac Max. 265Vac
Power Factor: PF>0.97/115Vac , PF>0.85/230Vac, at full load
Efficiency: 82%
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 10-42Vdc
Output Current: 100-400mA
Output Power: 1W~12W
Dimming Range: 0~100%, 0.01% dimming depth.
Certification: CCC,CB,CE,RCM,TUV,UKCA,ROHS
Warranty: 5 years
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
1-4.2W 10-42V 100mA
1.5-6.3W 10-42V 150mA
2-8.4W 10-42V 200mA
2.5-10.5W 10-42V 250mA
3-12W 10-40V 300mA
3.5-12W 10-34V 350mA
4-12W 10-30V 400mA
SE-12-350-700-W1M
Rubycon capacitor
Dimming Interface: DMX512/RDM
Input Voltage: 100-240Vac Max. 265Vac
Power Factor: PF>0.97/115Vac , PF>0.85/230Vac, at full load
Efficiency: 81%
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 10-24Vdc
Output Current: 350-700mA
Output Power: 3.5W~12W
Dimming Range: 0~100%, 0.01% dimming depth.
Certification: CCC,CB,CE,RCM,TUV,UKCA,ROHS
Warranty: 5 years
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
1.05-8.4W 3-24V 350mA
1.2-9.6W 3-24V 400mA
1.35-10.8W 3-24V 450mA
1.5-12W 3-24V 500mA
1.65-12.1W 3-22V 550mA
1.8-12W 3-20V 600mA
1.95-12W 3-18.5V 650mA
2.1-12W 3-17V 700mA
Package Included:
1 Piece of Ltech DMX LED Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
