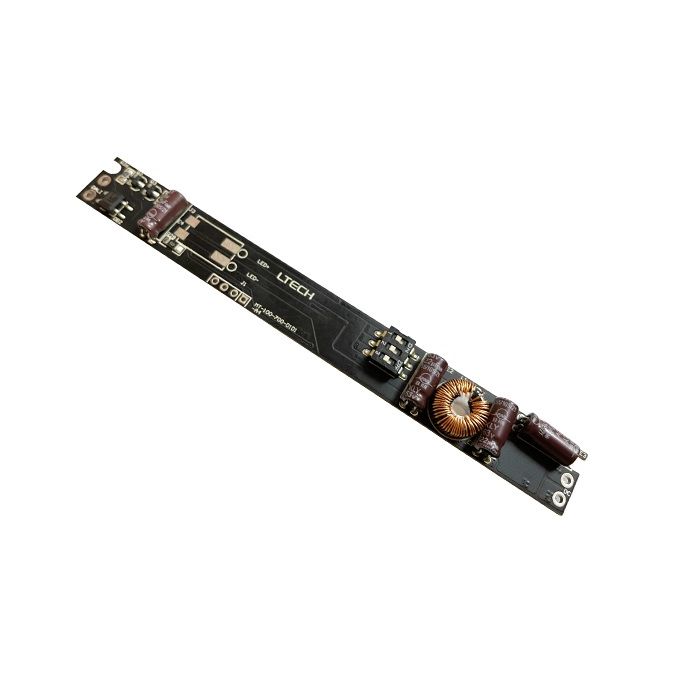

Ltech MT-100-400-D1D1 MT-350-700-D1D1 Magnetic CC DALI LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

DALI Constant Current Driver Special for magnetic absorption lamp and linear

Not polarity.

Multi-current setting.

DC to DC Constant current output.

DALI 2.0 protocol.

Suitable for STUCCHI standard housing.

Magnetic installation application, quiet and without high-frequency interference sound.

Smooth dimming curve without flicker.

Short circuit, overload, no-load and anti-reverse protection.

5 years warranty.

MT-350-700-D1D1

Dimming Interface:    DALI

Input Voltage:    48Vdc±5% (Not polarity)

Efficiency:    95%

Fluctuation Level:    No video flicker / High frequency exemption level.

Output Voltage:    10~42Vdc

Output Current:    350-700mA

Output Power:    3.5W-29.4W

Dimming Range:    0~100%,dimming depth 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)     Vout(DC)     Constant(DC)
3.5-14W        10-40V            350mA
4-16W           10-40V            400mA
4.5-18W        10-40V            450mA
5-20W           10-40V            500mA
5.5-22W        10-40V            550mA
6-24W           10-40V            600mA
6.5-26W        10-40V            650mA
7-28W           10-40V            700mA

MT-100-400-D1D1

Dimming Interface:    DALI

Input Voltage:    48Vdc±5% (Not polarity)

Efficiency:    95%

Fluctuation Level:    No video flicker / High frequency exemption level.

Output Voltage:    10~42Vdc

Output Current:    100-400mA

Output Power:    1W-16.8W

Dimming Range:    0~100%,dimming depth 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)       Vout(DC)            Constant(DC)
1-4W                  10-40V                   100mA
1.5-6W               10-40V                   150mA
2-8W                  10-40V                   200mA
2.5-10W             10-40V                   250mA
3-12W                10-40V                   300mA
3.5-14W             10-40V                   350mA
4-16W                10-40V                   400mA

Package Included:

1 Piece of Ltech LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
