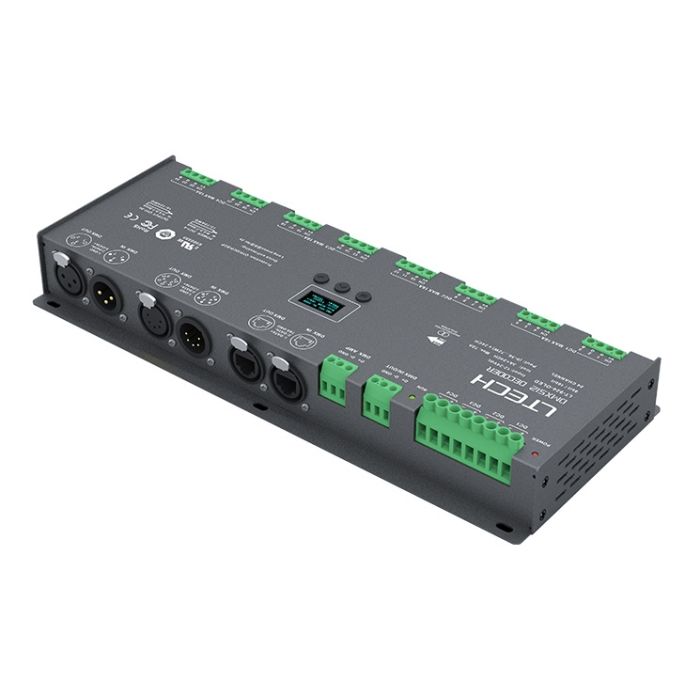

Ltech LT-924-OLED 24CH CV DMX Decoder RDM With Display Controller

€134.06
In stock
SKU
Ltech LT-924-OLED 24CH CV DMX Decoder RDM With Display
  • Buy 16 for €126.01 each and save 6%

For more DMX512/RDM Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/DMX512/RDM-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Ltech LT-924-OLED 24CH CV DMX Decoder RDM With Display Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Features

Designed for Hi-power multiple channels application, 24 channels output, and maximum 3A current per channel, up to 1728W output power

Easy operation with OLED screen and touch buttons.

3 kinds of mode optional: single color, color temperature, RGB.

Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).

With RDM remote management protocol, the operations can be completed via the RDM master console,
such as parameters browsing&setting, DMX address setting, equipment recognition, etc.

With firmware upgrade function.

With short circuit, over current and over-heat protection, as well as warning function when fault.

With power-on state management and fast self-testing function.

16bit (65536 levels) / 8bit (256 levels) grey level optional.

Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.



Model: LT-924-OLED

Input Signal: DMX512/RDM

Input Voltage: 12~24V DC

Current Load: 3A×24CH Max 72A

Output Power: (0~36W...72W)×24CH Max.1728W

DMX Interface: 3-pin XLR, 5-pin XLR, RJ45, Green terminal

Control Mode: Dimming/CT/RGB

Dimming Curve: 0.1~9.9

Grey Level: 8bit (256levels) / 16bit (65536levels)

Photoelectric Isolation: Yes

Protection: Short circuit / Over current / Over-heat

Working Temperature: -30°C~65°C

Dimensions: L300×W122×H39mm

Package Size: L313×W127×H41mm

Weight (G.W.) : 1180g

Package Included:

1 Piece of Ltech LT-924-OLED 24CH CV DMX Decoder RDM With Display Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
