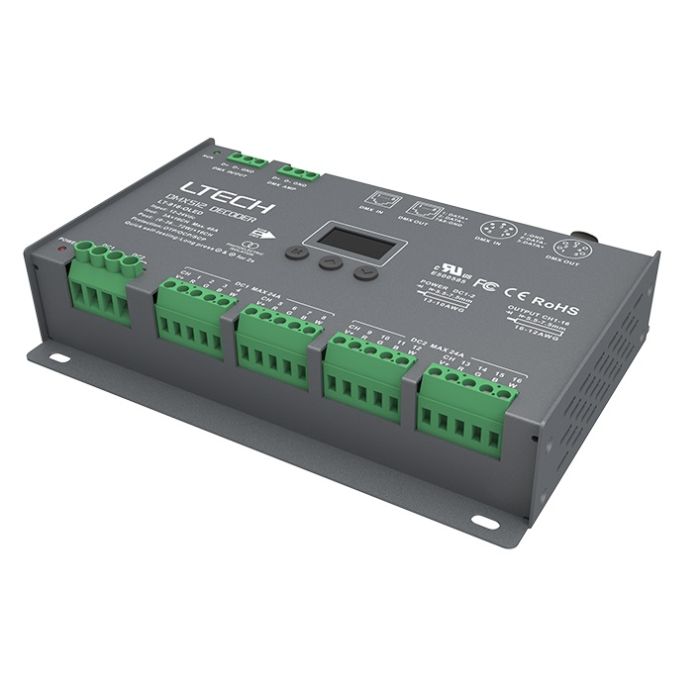

Ltech LT-916-OLED 16 Channels Constant Voltage DMX RDM LED Decoder Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Features

Designed for Hi-power multiple channels application, 16 channels output,
and maximum 3A current per channel, up to 1152W output power

Easy operation with OLED screen and touch buttons.

4 kinds of mode optional: single color, color temperature, RGB, RGBW

Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR,
RJ45 and green terminal (with signal amplifier function).

With RDM remote management protocol, the operations can be completed via the RDM master console,
such as parameters browsing&setting, DMX address setting, equipment recognition, etc.

With photoelectric isolation function.

With short circuit protection and over current protection, as well as warning function when fault.

With fast self-testing function.

16bit (65536 levels) / 8bit (256 levels) grey level optional.

Multiple dimming curve (0.1~9.9) optional.

Model : LT-916-OLED

Input Signal : DMX512/RDM

Input Voltage : DC 12~24V

Current Load : 3A × 16CH Max 48A

Output Power : (0~36W...72W) × 16CH Max. 1152W

DMX Interface : 5-pin XLR, RJ45, Green terminal

Control Mode : Dimming/CT/RGB/RGBW

Dimming Curve : 0.1~9.9

Grey Level : 8bit (256 levels) / 16bit (65536 levels)

Photoelectric Isolation : Yes

Protection: Short circuit / Over current

Working Temperature: -30°C~65°C

Dimensions: L180×W122×H39mm

Package Size: L193×W127×H41mm

Weight (G.W.) : 730g

Package Included:

1 Piece of Ltech LT-916-OLED 16 Channels Constant Voltage DMX RDM LED Decoder Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
