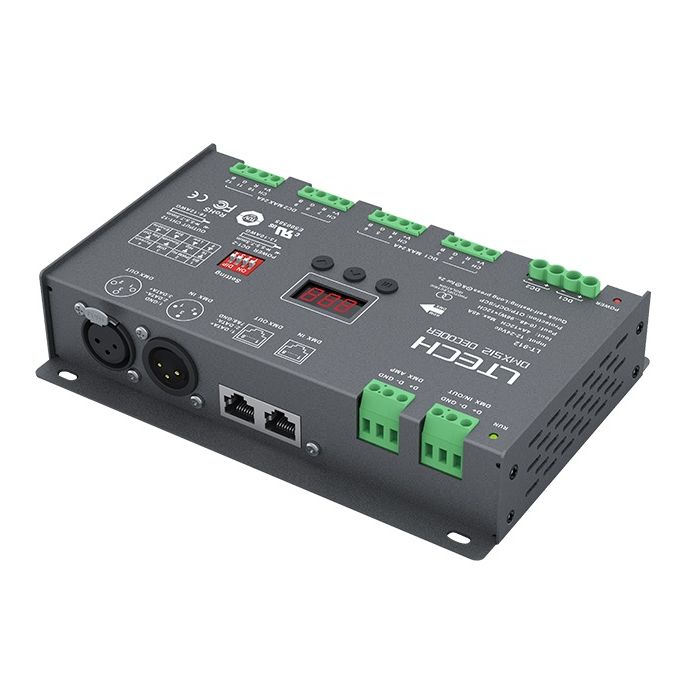

Ltech LT-912 12 Channels Constant Voltage DMX-PWM RDM Decoder Driver

€74.36
In stock
SKU
Ltech LT-912 12 Channels Constant Voltage DMX-PWM RDM Decoder
  • Buy 16 for €71.37 each and save 4%

For more DMX512/RDM Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/DMX512/RDM-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Ltech LT-912 12 Channels Constant Voltage DMX-PWM RDM Decoder Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Product Introduction

1. Designed for Hi-power multiple channels application, 12 channels output, and up to 1152W output power.

2. Easy operation with digital display and the touch buttons.

3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal amplifier function).

4. With RDM remote management protocol, the operations can be completed via the RDM master console,
such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.



Technical specifications

Model: LT-912

Input Signal: DMX512/RDM

Input Voltage: DC 12~24V

Current Load: 4A×12CH Max. 48A

Output Power: (0~48W...96W) × 12CH Max. 1152W

DMX Interface:  3-pin XLR, RJ45, Green terminal

Grey Level: 8bit (256 levels) / 16bit (65536 levels)

Protection: Shortcut / Over load

Working Temperature: -30°C~65°C

Dimensions:  L180×W122×H39mm

Package Size: L193×W127×H41mm

Weight (G.W.): 730g

Package Included:

1 Piece of Ltech LT-912 12 Channels Constant Voltage DMX-PWM RDM Decoder Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
