Ltech LT-903 3 Channels Dmx512 Rdm Dmx Decoder

€34.21
In stock
SKU
Ltech LT-903 3 Channels Constant Voltage DMX512 RDM Decoder
  • Buy 16 for €31.46 each and save 8%

For more DMX512/RDM Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/DMX512/RDM-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

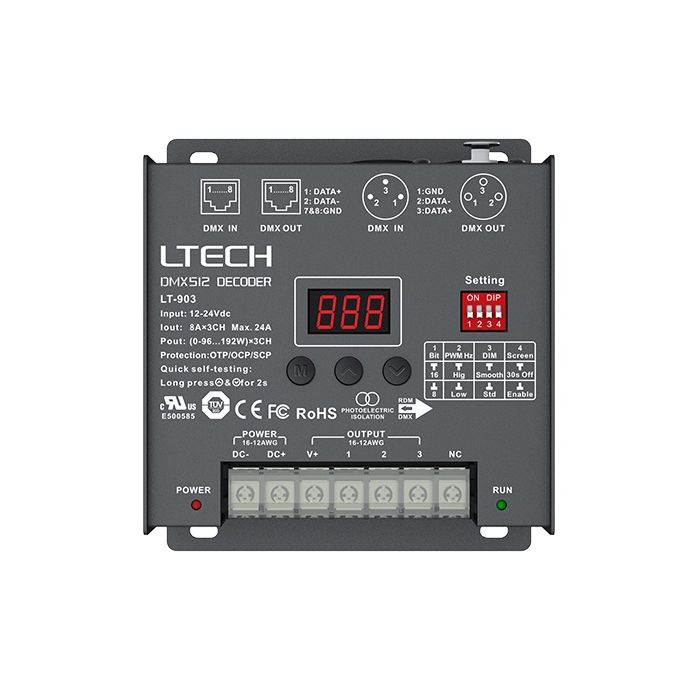

Ltech LT-903 Controller 3 Channels Constant Voltage DMX512 RDM Led Decoder Control Dimmer Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

1. Designed with 3 channels output, and Max. 8A current per channel, up to 576W output power.

2. Easy operation with digital display and the touch buttons.

3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.

4. With RDM remote management protocol, the operations can be completed via the RDM master console,
such as parameters browsing & setting, DMX address setting, equipment recognition,etc.

5. With short circuit protection and over load protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.



Technical Specifications

Model: LT-903

Input Signal: DMX512/RDM

DMX Interface: 3-pin XLR, RJ45

Input Voltage: DC 12~24V

Current Load: 8A×3CH Max. 24A

Output Power: (0~96W...192W) × 4CH, Max. 576W

Grey Level: 8bit (256 levels) / 16bit (65536 levels

Protection: Shortcut / Over load

Working Temp.: -30°C~65°C

Dimensions: L122×W110×H37mm

Package Size: L127×W123×H41mm

Weight (G.W.): 550g

Package Included:

1 Piece of Ltech LT-903 3 Channels Constant Voltage DMX512 RDM Decoder Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
