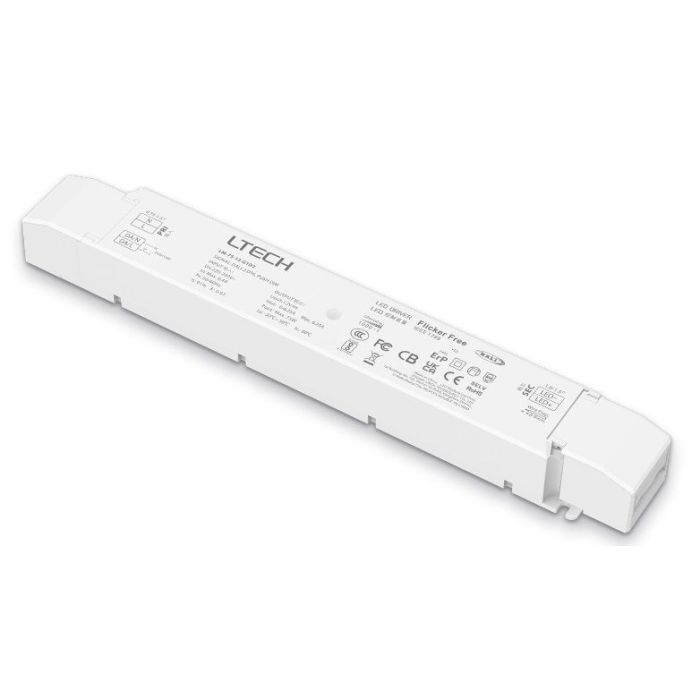

Ltech LM-75-24-G1D2 Constant Voltage 24V DALI LED Dimmable Driver Controller

€27.37
In stock
SKU
Ltech LM-75-24-G1D2 Constant Voltage 24V DALI LED
  • Buy 50 for €25.11 each and save 8%

For more DALI Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Ltech LM-75-24-G1D2 Constant Voltage 24V DALI LED Dimmable Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: DALI, Push Dim.

Dimming range from 0-100%, LED start at 0.1% possible.

0~100% flicker-free, achieve the level of exemption assessment.

DALI dimming curve: liner curve or logarithmic curve.

Over-heat / Over load / Short circuit protection, recover automatically.

Standby Power Loss < 0.5W

Full protective plastic housing.

DALI bus standard: IEC62386-101,102, 207.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.

Technical Specs:

LM-75-24-G1D2

Dimming Interface:     DALI (IEC62386), Push Dim

Dimming Range:    0~100%, LED start at 0.1% possible.

Input Voltage Range:     200-240Vac, 277Vac (for North America only)

Power Factor:

PF>0.96/230Vac , PF>0.95/277Vac, at full load

Efficiency:    >91.5%

Output Voltage Range:     24Vdc ±0.5Vdc

Output Power Range:    1~75W

Output Current:     Max. 3.12A

Working Temperature.:    tc: 80℃ ta: -30 ~ 55℃

Dimension:    292×43×30mm(L×W×H)

Packing:    296×44×33mm(L×W×H)

Weight(G.W.):    300g±10g

Package Included:

1 Piece of Ltech LM-75-24-G1D2 Constant Voltage 24V DALI LED Dimmable Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
