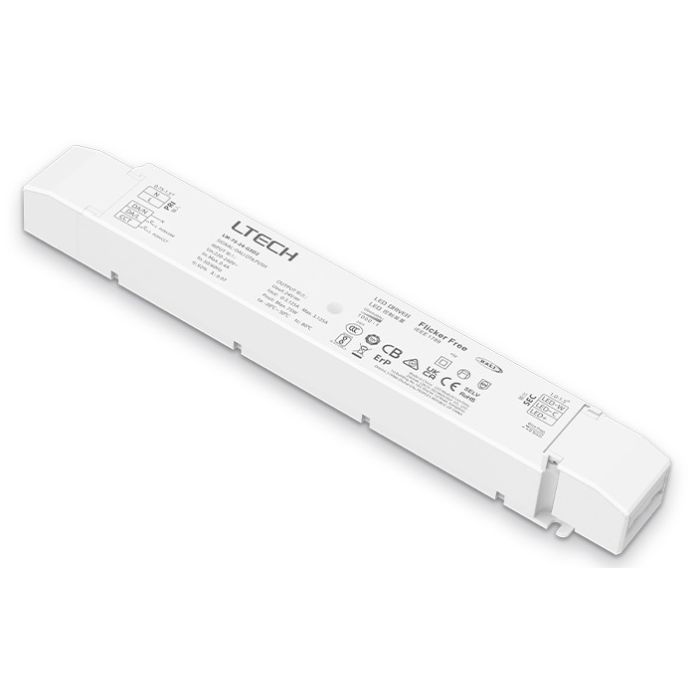

Ltech LM-75-12-G2D2 LM-75-24-G2D2 DALI Led Dimmable Driver Controller

€31.17
In stock
SKU
Ltech DALI Led Dimmable Driver Controller
  • Buy 50 for €29.46 each and save 5%

For more DALI Controller Driver, pls check here: https://www.agodeu.com/ltech-controller/dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Ltech LM-75-12-G2D2 LM-75-24-G2D2 Decoder Control CV 24V DALI Led Dimmable Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Features

Dimming interface: DALI DT8, Push DIM/CCT

2 independently SELV constant voltage output channels.

DALI DT8, DIM and color temperature adjusting driver.

Constant power design, adjust different color temperature to keep the same brightness.

Dimming range from 0-100%, LED start at 0.1% possible.

Color temperature adjusting range: 2700-6500K

0~100% flicker-free, achieve the level of exemption assessment.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Standby Power Loss: <0.5W

Full protective plastic housing.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.

Rubycon capacitor

Dimming Interface: DALI DT8(IEC62386), Push DIM/CCT

Input Voltage:    220-240Vac

Power Factor:     PF>0.97/230Vac, at full load

Efficiency: 92%

Fluctuation Level: High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power: 0~75W

Dimming Range: 0~100%, dimming depth: Max. 0.1%

Certification: CCC,TUV,CE,RCM,CB,UKCA,ROHS

Warranty: 5 years

Package Included:

1 Piece of Ltech LED Dimmable Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
