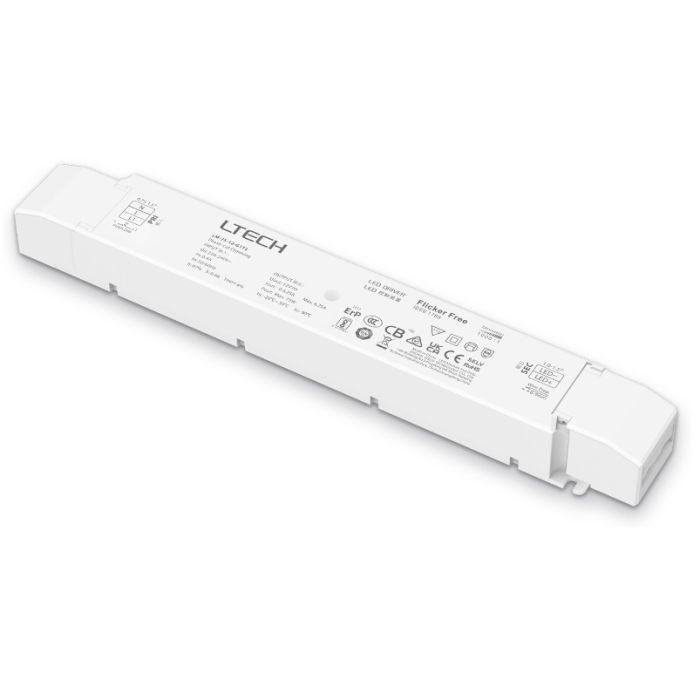

Ltech LM-75-12-G1T2 LM-75-24-G1T2 Constant Voltage Triac LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

LM-75-24-G1T2

Triac/ELV Push DIM, PWM digital dimming

Flicker-free

IEEE 1789

High frequency exemption level

Dimmable Maximum 0.1%-100%, 0.1% dimming dept

Rubycon capacitor

Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.

Input Voltage: 220-240Vac

Power Factor:  PF>0.98/230Vac , at full load

Efficiency: 88%

Fluctuation Level: High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power:    0~75W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP

Warranty:    5 years

LM-75-12-G1T2

Triac/ELV Push DIM, PWM digital dimming

Flicker-free

IEEE 1789

High frequency exemption level

Dimmable Maximum 0.1%-100%, 0.1% dimming dept

Rubycon capacitor

Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.

Input Voltage: 220-240Vac

Power Factor: PF>0.98/230Vac , at full load

Efficiency: 87%

Fluctuation Level: High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 6.25A

Output Power: 0~75W

Dimming Range: 0~100%, dimming depth: Max. 0.1%

Certification: CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP

Warranty: 5 years

Package Included:

1 Piece of Ltech LM-75-12-G1T2/LM-75-24-G1T2 Constant Voltage Triac LED Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
