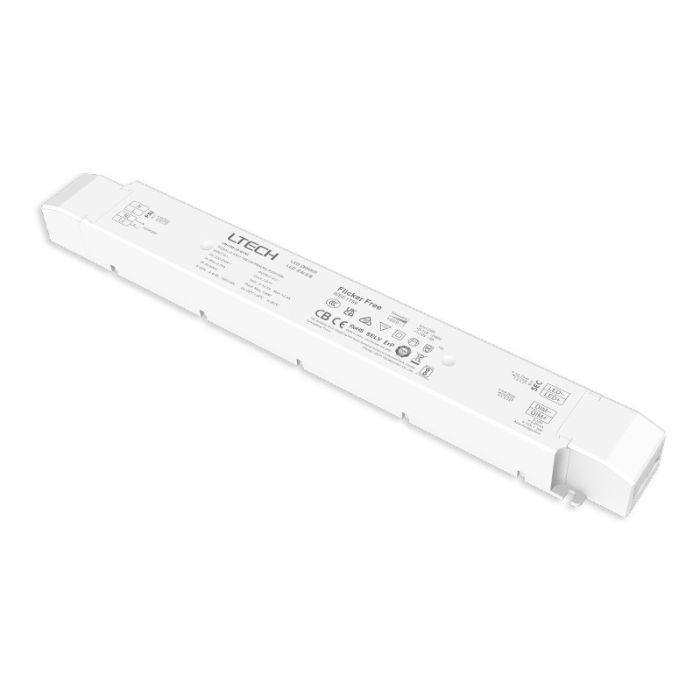

Ltech LM-150-24-G1A2 LM-150-12-G1A2 CV LED Driver Dimming Controller
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Dimming range from 0-100%, LED start at 0.1% possible.
With soft-on and fade in function, visual more comfortable.
Automatic recognition of 0-10V, 1-10V input signal.
0-100% flicker-free, High frequency exemption level.
High efficient driver: efficiency 93%, PF>0.98, THD<6%.
Ultra-low consumption of 0-10V ports: < 0.05mA.
Dimming interface with photoelectric isolation, in line with the latest safety standards, more safe and reliable.
In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Fully-protected plastic housing with design of dismountable end cover.
Suitable for internal lights application for I/II/III
Up to 50000-hour life time.
LM-150-12-G1A2
Rubycon capacitor
Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage: 220-240Vac 200-280Vdc
Power Factor: PF>0.98/230Vac, at full load
Efficiency: 92%
Fluctuation Level: High frequency exemption level.
Output Voltage: 12Vdc
Output Current: Max. 12.5A
Output Power: 0~150W
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Certification: CCC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA
Warranty: 5 years
LM-150-24-G1A2
Rubycon capacitor
Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Input Voltage: 220-240Vac 200-280Vdc
Power Factor: PF>0.98/230Vac, at full load
Efficiency: 93%
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 6.25A
Output Power: 0~150W
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Certification: CCC,EAC,KC,TUV,RCM,CB,CE,BIS,ERP,ROHS,UKCA
Warranty: 5 years
Package Included:
1 Piece of Ltech LM-150-24-G1A2/LM-150-12-G1A2 CV LED Driver Dimming Controller
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
