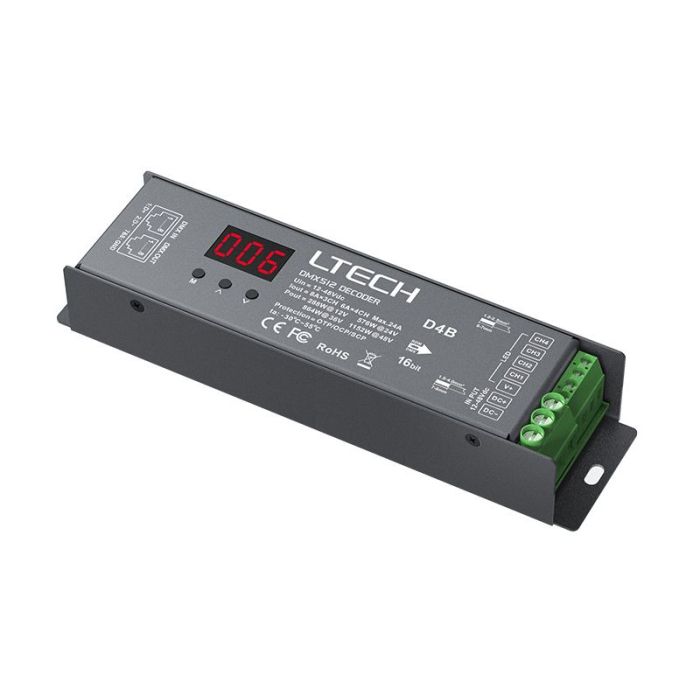

Ltech D4A D4B Led Controller Control Dmx Rdm 4CH CV Decoder Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

D4A is default, D4B is for optional

Standard DMX/RDM interfaces; Set address via the LCD screen and buttons;

RDM protocol; Browse and set parameters, change DMX address, and recognize devices via a RDM master;

DMX mode and customized mode can be switched;

PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz (default is 1800Hz);

16bit (65536 levels)/8bit (256 levels) gray scale optional;

Two dimming mode options: standard and smooth dimming;

Set 1/2/3/4 DMX channel output (default is 4 channel output);

Provide 10 lighting effects, 8 levels of dynamic mode speed, 255 brightness levels;

Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity;

Short circuit, over-temperature, over-current protection and auto recovery;

D4A has green terminal DMX interfaces, D4B has RJ-45 DMX interfaces.

Input signal    DMX512, RDM

Input Voltage    12-48V

Output Current    8A×3CH 6A×4CH Max.24A

Output Voltage    4×(12-48V)

Output Power    288W@12V 576W@24V 864W@36V 1152W@48V

Dimming Range    0-100%

Working Temp.    -25°C-55°C

Dimensions(L×W×H)    L175×W46×H30(mm)

Package Size(L×W×H)    L187×W52×H36(mm)

Weight (G.W)    325g±5g

Protection    Short circuit, over temperature, over current protection, auto recovery.

Package Included:

1 Piece of Ltech D4A D4B DMX RDM 4 Channels Constant Coltage Decoder Drivers

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
