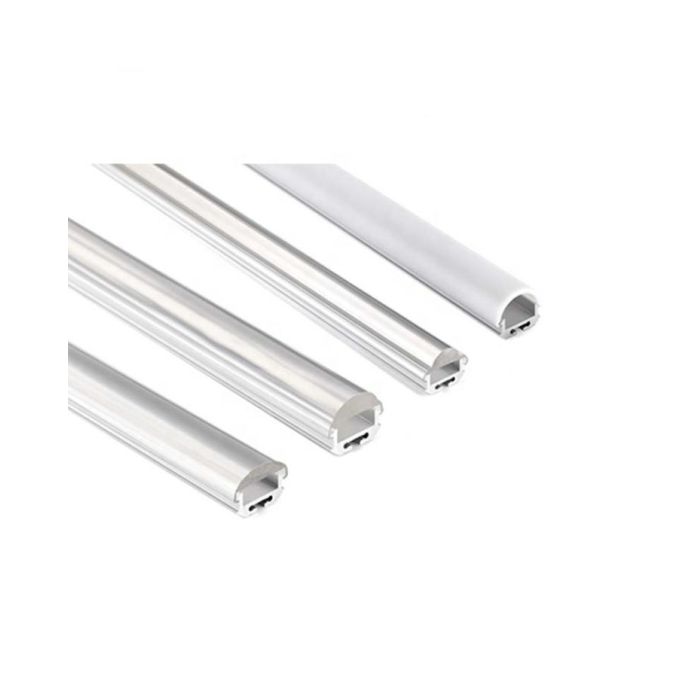

The Linear Light Profile with round covers is a great choice for any lighting project, 10 types of individual lenses are available, which
can be used to evenly distribute light in a variety of spaces. Can be mounted on the surface of your project with screws. End caps with
wire holes and metal clips are included. the Linear Light Profile includes 2 parts, the base is Aluminum Profiles, and the top part is the lens.
The Aluminum Profiles are made of 6063-T5 aluminum alloy with silver surface treatment, anti-oxidation resistance, and a longer lifespan than
other similar products. The LED Profiles can be used as a heat sink for better heat dissipation, which will extend the lifespan of the LED Lights.
The inner width is 13mm and allows the max width of LED Strips to be 13mm. There are 10 types of lenses available, and made of brand-stable
PMMA material, anti-yellowing, you could choose the 180°，30°，60°, and 90° Lenses, the round covers help to diffuse the light for a more even
distribution. The standard length is 1M and the max length is 3m per piece and can be cut to any size. Easy to install and use, perfect for providing
even illumination in both commercial and residential settings.
Features:
Model: ALP039 Series
Material: 6063-T5 Aluminium Alloy
Surface Treatment: Silver Anodized
Colors: Silver(Default), White, Black
Size: ALP-039: 18*16.2mm(W*H); ALP-039-30: 18*15mm(W*H); ALP-039-60: 18*15.29mm(W*H); ALP-039-90: 18*13.5mm(W*H)
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
Custom Length Available: YES
Inner Width: 13mm
Compatible With 8mm/10mm/12mm Flexible LED Strips
Max Power; <15W/M
Beam Angle: 30°，60°，90°， 180°
Diffusers: PMMA Opal Matte Diffuser/PMMA Semi-Clear Diffuser/PMMA Clear Diffuser(ALP-039); PMMA 30° Clear Diffuser/PMMA 30° Semi Clear Diffuser(ALP-039-30);
PMMA 60° Clear Diffuser/PMMA 60° Semi-Clear Diffuser(ALP-039-60); PMMA 90° Clear Diffuser/PMMA 90° Semi-Clear Diffuser(ALP-039-90)
Installation: Surface Mounted
End Caps With Wire Holes And Metal Clips Included
Applications: Under Cabinet / Wardrobe
3 Years Warranty
Includes:
1 set of Linear Profile Light
End Caps(With Wire Holes And Without Wire Holes)
Metal Clips
CE and RoHS approved
