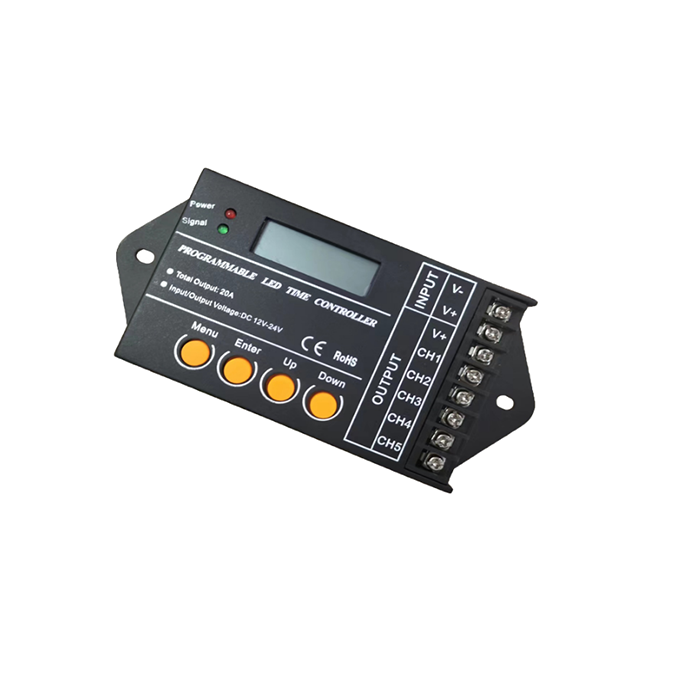

Leynew TC420SJ Programmable Time Led Controller Control Dimmer DC 12V 24V

€18.35
In stock
SKU
Leynew TC420SJ Programmable Time Led Controller

For more Leynew Controller, pls check here: https://www.agoau.com/leynew-controller.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agodeu.com

Leynew TC420SJ Programmable Time Led Controller Control Dimmer DC 12V 24V

There is an upper computer in the programmable time controller to make the load output change over time.

the customer may customize schedule mode they want through the upper PC. Then through the USB port to

download required schedule to the controller.Adopt type-c interface, easy to connect to PC。The upper PC in

addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous

clock function of upper host.If user want to see the schedule mode effect after editing , they can use fast sowing function

of upper.Because there is no delete function of the upper host ,so the mode name display space will come into blank as

long as you execute delete.This controller can control load of led changing effect no more than five channels .And it can be

used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.

Technical Parameters:

Working temperature:-20-60℃

Supply voltage:DC12-24V

static power:< 1W

net weight:150g

gross Weight:250g

External dimension:150MM*68.5MM*21MM

Packing dimension:185MM*100MM*54.8MM

Output: 5 channels

Max load current:20A

Connecting Mode: Common anode

the controller output frequency of 600 hz

A single mode can set up to 50 time nodes.

Package Included:

1 Piece of Leynew TC420SJ Programmable Time Led Controller Control Dimmer DC 12V 24V

Leynew_Controller_TC420SJ_1

Leynew_Controller_TC420SJ_2

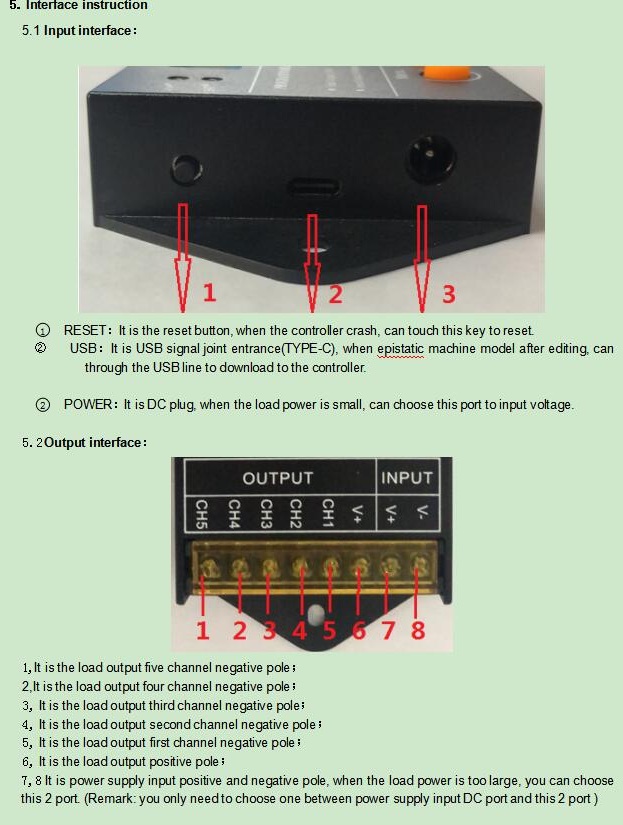

Leynew_Controller_TC420SJ_3

Leynew_Controller_TC420SJ_4

Leynew_Controller_TC420SJ_5

Leynew_Controller_TC420SJ_6

Leynew_Controller_TC420SJ_7


CE and RoHS approved
