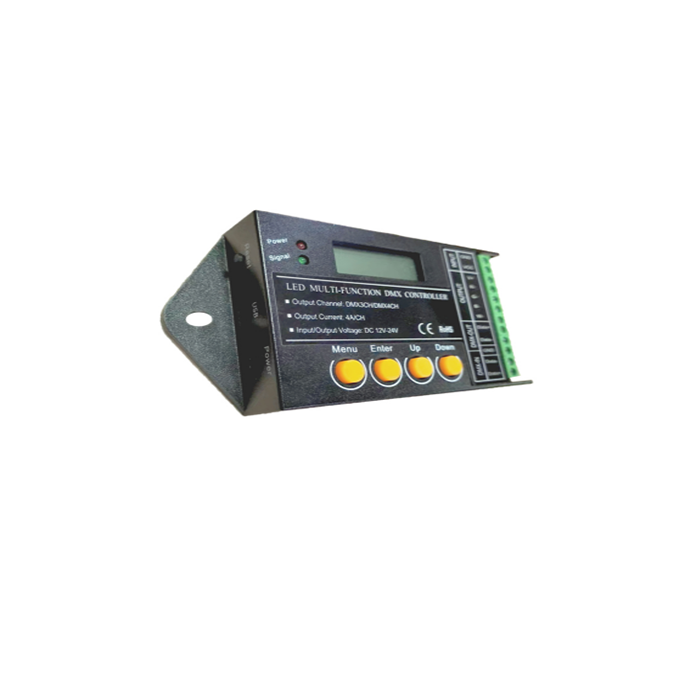

Leynew NL603 Led Display Multi-function DMX Controller Control Dimmer

LED display multi-function DMX controller NL603

LED display multi-functional DMX controller controls the change of load LED by receiving DMX512 signal,

you can select DMX address setting (range 001-512) through button setting; output PWM frequency (default is 1,

there are 0.5K/1K/2K/ 4K/8K); dimming curve selection (default 1.0, range 0.8/1.0/1.8/2.7/5.5); output type (DMX3CH,

DMX4CH, DMX-M), there are 11 built-in modes to choose from.

Technical Parameters:

Working temperature:-20-60℃

Supply voltage:DC12-24V

static power:< 1W

net weight:150g

gross Weight:250g

External dimension:150MM*68.5MM*21MM

Packing dimension:210*130*43mm

Output:3/4 channel

Max load current:4A

Connecting Mode:Common anode

Controller output frequency: optional 500HZ; 1KHZ, 2K, 4K, 8k

Package Included:

1 Piece of Leynew NL603 Led Display Multi-function DMX Controller Control Dimmer


CE and RoHS approved
