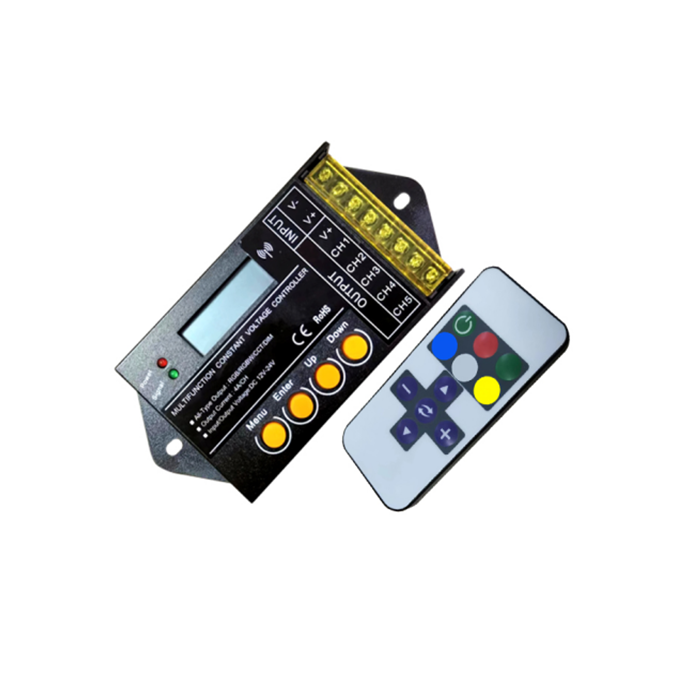

Leynew NL301 Display Multi-function Constant Voltage Dimmer Led Controller

LED display multi-functional constant voltage controller, which is specially designed for lighting control

applications in different scenes, adopts perfect single-chip microprocessor technology to convert digital

control signals of external circuits into PWM (pulse width modulation) control signals. Provide 5 channels output,

each channel can output 4A current, the maximum output current can be up to 20A, which can be used to realize

the control function of single, CCT, RGB, RGBW type lamps. Customers can select the required output frequency and

control type mode through the controller, and use the remote control to realize real-time control of wireless lighting

transformation effects. For the adjustment of lighting change effects, it can be applied to various scenes such as plant lights,

light box advertisements, stage scenery, and home decoration.

Technical Parameters

Working temperature:-20-60℃

Supply voltage:DC12-24V

static power:< 1W

net weight:150g

gross Weight:250g

External dimension:150MM*68.5MM*21MM

Packing dimension:210MM*132MM*46MM

Output: 5 channels

Max load current:20A

Connecting Mode:Common anode

The default output frequency of the controller is 1KHZ (frequency is optional)

Package Included:

1 Piece of Leynew NL301 Display Multi-function Constant Voltage Dimmer Led Controller


CE and RoHS approved
