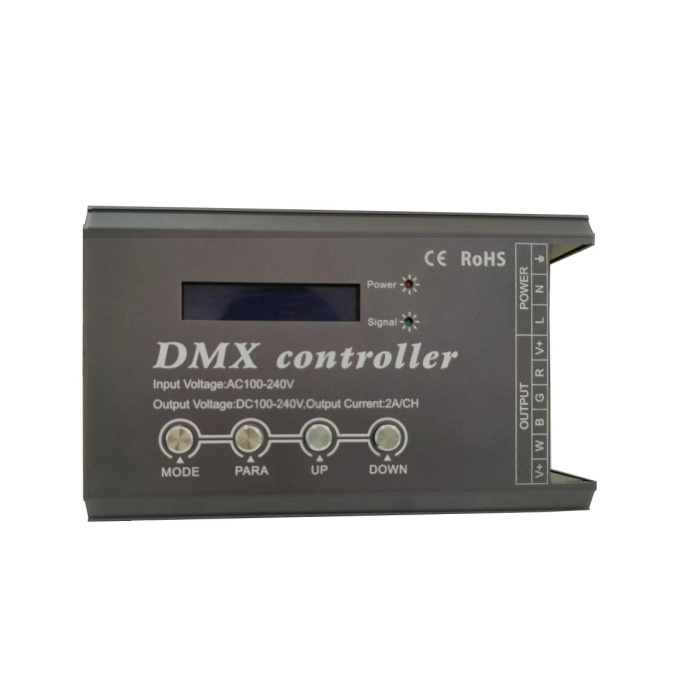

Leynew DMX300D 4CH High Voltage Led Dmx Decoder Short Circuit Protection Controller

High-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface,

used for control the RGB color change of 5 line 4 channels(common anode) LED lamps, up to 34kinds of

change programs to choose, at the same time can accept DMX-512 international standard digital control.

Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc.

method to work. According to the customer's actual demand, can achieve jumpy changing, gradual changing,

stroboscopic such change effect.

Technical Parameters:

Working temperature:-20-60℃

Power supply voltage:AC 100~240V  50/60HZ

Output voltage:DC 100~240V

Output connect way:: common anode 5 line 4 channels

External dimension:L203*W134*H50 mm

Packing size:L225*W120*H55 mm

Net weight:698.5g

Gross weight:900g

Static power consumption:<2W

Maximum output current:4*2A,each circuit has short-circuit protection function and 20% fuse protection for overload.

Dimming frequency:980Hz

Maximum output power:880W(input voltage 110V),1760W(input voltage 220V)

Package Included:

1 Piece of Leynew DMX300D 4CH High Voltage Led Dmx Decoder Short Circuit Protection Controller


CE and RoHS approved
