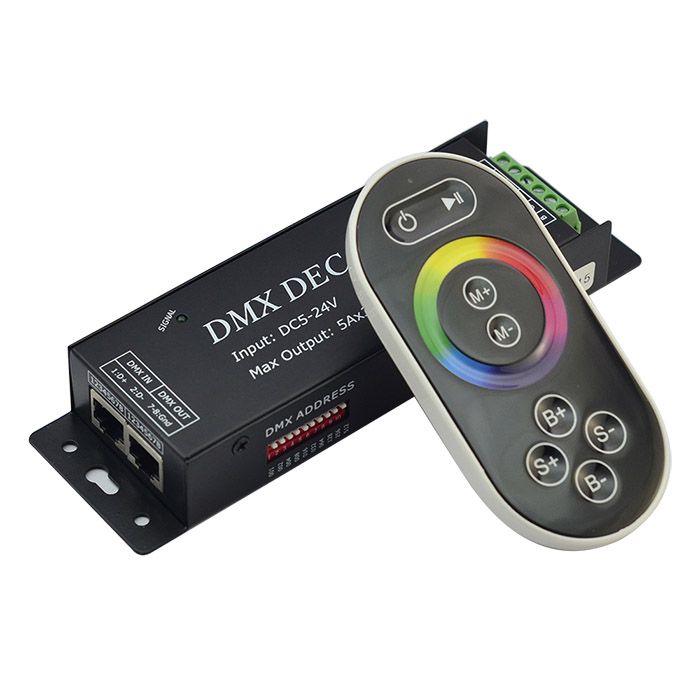

Leynew DMX101 DC5-24V 3 Channel DMX Bar Decoder Colourful Light Bar Module Led Controller

The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal

that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning

protection measures, while the load output has over-current protection circuit; You could connect the DMX

decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with

DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.

Technical Parameters

Decoder

Working temperature: -20-60 ℃

Input voltage: DC5-24V

Output: 3 channel

Connection mode: common anode

External dimension: L175 * W53 * H27(mm)

Packing size: L180 * W58 * H58(mm)

Net weight: 300g

Gross weight: 350g

Output current: <5A (each channel)

Output power: 5V:<75W,  12V:<180W,  24V:<360W

Touch remote

Working temperature: -20-60℃

Power supply mode: AAA*3 battery

Supply voltage: 1.5V*3

Standby power consumption: 0.015mW

Standby current: 3uA

Emission current: 10mA

Remote distance: 15m

Standby time: 6 months

Package Included:

1 Piece of Leynew DMX101 DC5-24V 3 Channel DMX Bar Decoder Colourful Light Bar Module Led Controller

CE and RoHS approved
