LED T-500 Pixel Controller For 1903 2801 2811 2812B 6803 Lights

Be the first to review this product

€21.61

In stock

LED T-500 Pixel Controller For 1903 2801 2811 2812B 6803 Lights is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com brings advanced and effective LED products in Singapore, Indonesia, Malaysia, Philippines and worldwide. Quality LED Lighting Equipment And Systems With The Latest Technology. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specification:

Supply Voltage: DC5-24V

Output Type: TTL/SPI

IC Control Quantity: 512pcs

Working Temperature: -20°C – 60 °C

Dimensions ( L X W X H ): about 98mm x 62mm x 23mm

Product weight: about 105g

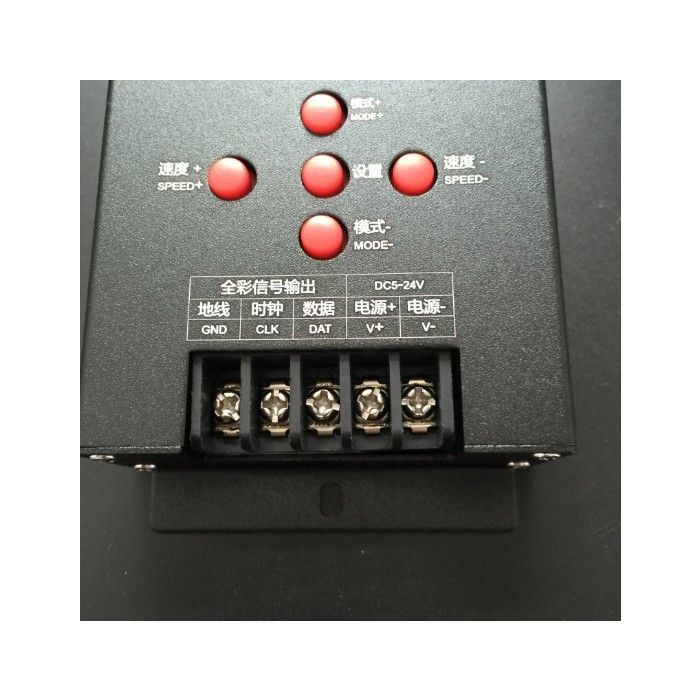

Connection Instructions:

1. Connect led light signal wire first,Generally single wire IC(TM1803/TM1804/TM1809)

connect DAT and GND,Double wire IC(LPD6803,SM16716)connect DAT,CLK and GND.

2. "Power+"Switching power supply DC12V positive,"Power+" Switching power supply

DC12V negative.

3. Display when power supple:P-001 P: represent Mode 001: represent Mode value,Total 36 mode.

Setting Instructions:

1. Press the setting , Into "IC mode choose" state,Press "mode+"or"mode-"can select different IC

which IC model digital tube can show,Able been controlled IC model:LPD6803 LPD1109 LPD1882

LPD1886 P9813 SM16716 TM1803 TM1903 TM1829 WS2811 WS2801;

2. Then press the setting again, then set IC quantity, Press"mode+"or"mode-"add or reduce IC

quantity,Digital tube show:L-001, Max IC quantity: 512pcs;

3. Press the setting once more to save Settings information,the interface back to mode selection:

P-0xx;

4. Change mode: Directly press:"mode+"or"mode-", Interface show: P-0XX corresponding value

will increase or decrease;

5. Adjust the speed of change: Directly press:"mode+"or"mode-", Interface show:SP-XXX

corresponding value will increase or decrease

Package Included:

1 Piece of LED T-500 Pixel Controller

1 Piece of User's Manual

LED_T_500_Pixel_Controller_1

CE and RoHS approved
