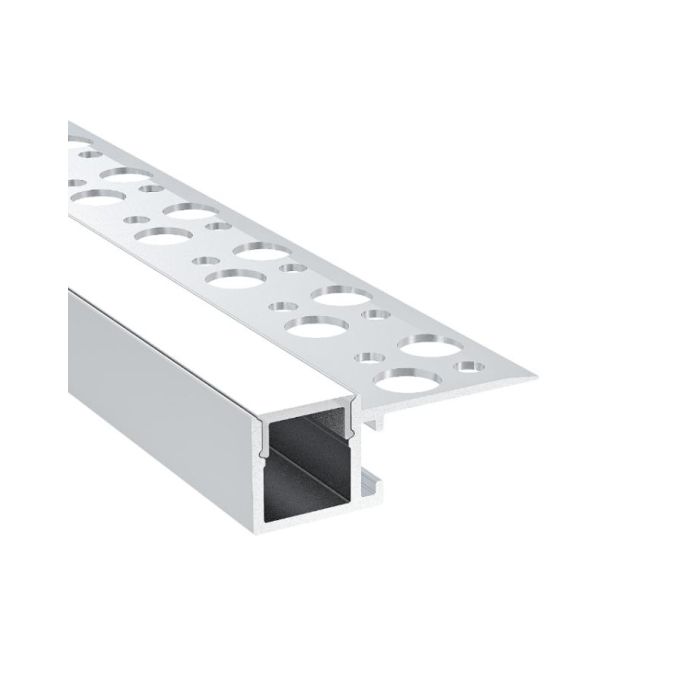

Check the F Bead Recessed Light Fixture Housing, which can be recessed into the 12.5mm plasterboard or drywall on the edge of
the wall or ceiling for indoor decoration projects. With holes on one flange, easy to plaster in and paint, giving the interior lighting
in your rooms a slick modern look. Three types of connectors are available: 90°, 90° vertical, and 180°. You can use them to reconnect
the F Reveal Bead for your projects. Aluminum Housings are made of 6063-T5 aluminum material with anodized surface treatment,
anti-oxidation resistance, and a longer lifespan. 3 colors are available: white, silver, and black colors. Standard length is 1M and 2M,
and custom lengths are available. The inner width is 10.5mm, allowing the max-width of COB LED Stripes to be 10mm to create
seamless linear lighting. Aluminum Reveal Bead can be worked as a heat sinker for better heat dissipation. Only one type of diffuser
is available, the PC diffused cover, which is made of brand-imported material, anti-yellowing, perfect light distribution, and soft light
output. The end caps with wire holes are included, and it is easy to connect the LED Tape Lights to the Light Driver to light up.
Features:
Model: ALP068-SR1
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 35.9*14mm(W*H)
Colors: White, Silver(Default), Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Lengths Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10.5mm
Max Width Of LED Strip Lights: 10mm
Max Power: 12W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps With Wire Holes Included
90°, 90° Vertical And 180° Connectors Sold Separately
LED Strip Lights, Dimmers, And Light Drivers Sold Separately
Installation: Recessed Into 12.5mm Drywall Or Plasterboard
5 Years Warranty
Includes:
1 set of Plaster-In Light Fixture Housing With Diffuser
End Caps(With Wire Holes/Without Wire Holes)
CE and RoHS approved
