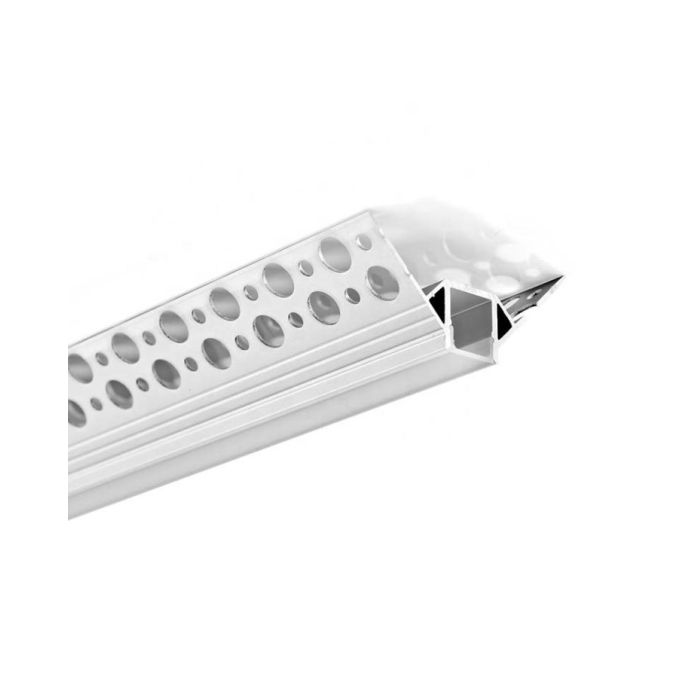

Check the Trimless LED Drywall Profile for external corner installation, which is designed to provide seamless, contemporary
line lighting for your home or business. The Profiles can be installed in an outside corner between two walls, and it provides an
attractive way to finish the edge of the drywall. The Corner Drywall Profiles are made of high-quality aluminum alloy material with
an anodized finish, anti-oxidation resistance, and a longer lifespan. The standard length is 1M and 2M, and the max length is 3
meters, can be cut to any length that fits for your needs. The inner width is 10.5mm and allows the max width of Strip Lights to
be 10mm, recommend adding high-density 2835 LED Strip Light or 10mm COB Strip Lights as the light source without visible light
dots. End caps with wire holes and without wire holes are included, and easy to connect the Strip Lights to the LED Power Supply
or LED Dimmer to light up or adjust the brightness. There is only one type of diffuser available: the PC diffuser cover, which is
made of brand material from Japan with stable quality, anti-yellowing, perfect light distribution, and even light output without
dark areas. The Drywall LED Profiles with trimless design allow for a flush installation with no visible screws or nails.
Features:
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Model: ALP070-R
Color: Silver, White, Black
Size: 50.6*22.8mm
Standard Length: 1Meter
Other Lengths Available: 1.5M, 2M, 2.5M, 3M
Custom Length Available: YES
Diffuser: PC Diffuser Cover
Inner Width: 10.5mm
Allows The Max Width Of Strip Lights To Be 10mm
Can Work With SMD LED Strips And COB LED Tapes
Max Power: <15W/Meter
End Caps With Wire Hole And Without Wire Hole Included
Installation: Drywall Recessed
Applications: Drywall/Plasterboard/Gypsum Structure
Warranty: 5 Years
Includes:
1 set of LED Drywall Profile With Diffuser
End Caps(With Wire Holes And Without Wire Holes)
How To Install The LED Drywall Profile:
1. Fix The Profiles On The Drywall.
2. Painting The Plaster.
3. Paint Lacquer(Overcoating).
4. Stick The Flexible LED Strips.
5. Install The LED Diffuser.
CE and RoHS approved
