We supply high quality Skydance Led products to worldwide for many years.
Skydance's products are widely used in various dimming projects such as buildings, hotels,
offices, museums, public spaces, outdoor lighting, etc.
These projects include lighting control functions such as dimming, color tempering, adjusting RGB,
adjusting RGBW, zoning and networking, and scene storage, among others.
They have been used in prominent projects, such as China Central Television (CCTV) Headquarters, Lausanne
Opera House, Guangzhou West Tower, Guangzhou Cultural Oriental, and Macau Galaxy Hotel , to name a few.
We have helped our customers control smart lights, maximize energy use, drive overall efficiency and deliver new experiences.
The EV4 is a 12-36VDC constant voltage LED power repeater with 4 channel, maximum 6A per channel output,
which is designed to expand power output and receive PWM signal control. By adding one more power repeater,
the controller can control more LEDs, and unlimited power repeaters can be connected together to expand power output unlimitedly theoretically.
Feature
1.12-36V constant voltage power repeater.
2.4 channel, 5A per channel.
3.To receive PWM signal control.
4.Power repeater in series or in parallel to expand output unlimitedly.
Technical parameter
Input voltage: 12-36VDC
Load current: 4CH, 5A/CH
Output power: 4 x (60-180)W
Working temperature: -30℃~55℃

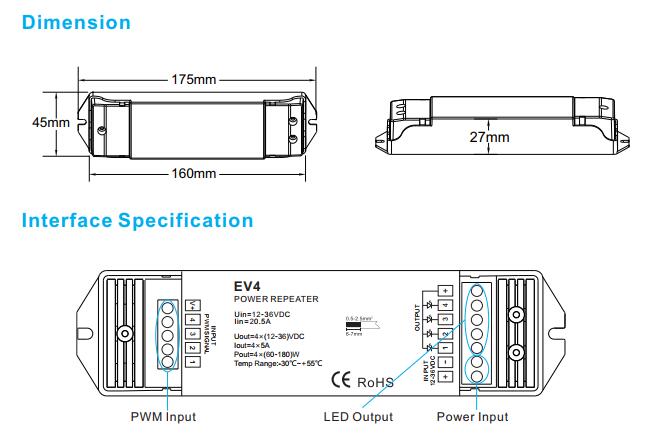

Product size: L175×W45×H27mm
Net weight: 114g
Package Content:
1 Piece of EV4 Led Controller Skydance Lighting Control System Power Repeater CV 4CH 12-36V
1 Piece of instruction User's Manual
CE and RoHS approved
