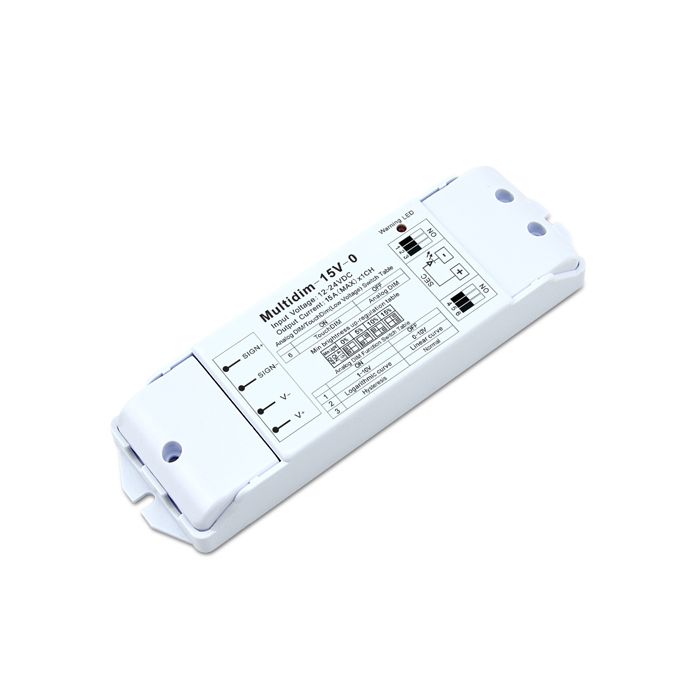

Euchips Multidim-15V-0 12-24 DC 15A 1ch CV 0-10V Led Dimmer

Short Description:

Item No.:Multidim-15V-0

Output Current:15A*1CH

Dim Mode:0-10V/1-10V

12V 24V DC 1 Channel Constant Voltage Dimmable Driver Multidim-15V-0

This is a multi-functional LED dimmer, dimming mode, dimming curve, min brightness level

all can be selected by dip switch.

Function Select Table

1. Analog Dim/Touch Dim Switch Table

Analog dim mode is selected by Switch bit 6 to off status, and if switch bit 6 to on

status Touch Dim function will be selected.

Touch dimmer is only a switch, signal isn*t have polarity in touch dim function.

2. Min Brightness Switch Table

Min brightness can be set in this dimmer from 0-15%. This function is available in both analog

function and touch dim function. This feature is very effective to solve the led flicker issue

in low-end. If led flicker, please up-regulate the min brightness.

3. Anti-interference Switch Table

Normal or Hysteresis

4. Dimming Curve Switch Table

Linear dimming or Logarithmic Dimming

5. Dimming Mode Switch Table

0-10V Dimming or 1-10V dimmng

Package Included:

1 Piece of Euchips Multidim-15V-0 12-24 DC 15A 1ch CV 0-10V Led Dimmer


CE and RoHS approved
