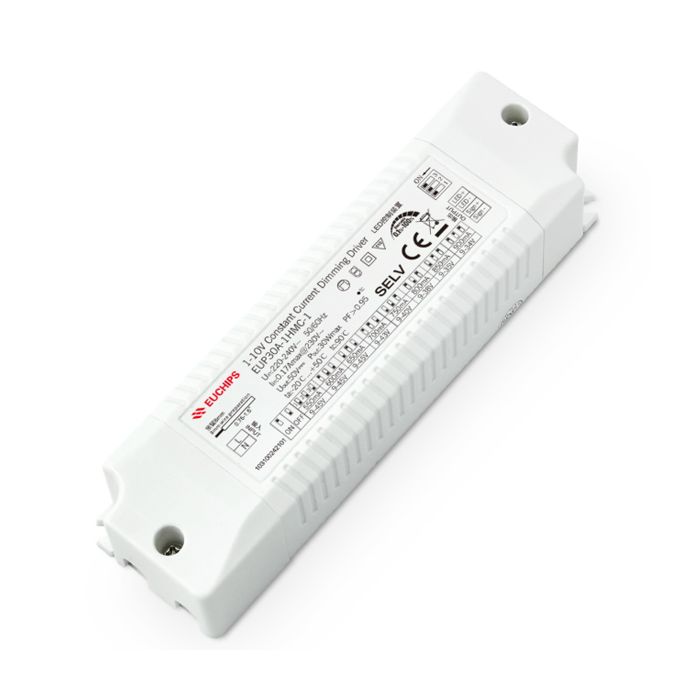

Euchips EUP30A-1HMC-1 30W 550-900mA 1ch 0/1-10V CC Led Driver

Short Description:

Item No.:EUP30A-1HMC-1

Output Power:30W

Size:150*43*29mm

30W 550/600/650/700/750/800/850/900mA Constant Current 1-10V Driver EUP30A-1HMC-1

EUP30A-1HMC-1 is a constant current output mode LED driver. The output current can be easily

set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal ,

or adjustable resistance to achieve the smooth dimming effect.

Feature

1. Single channel output, output current level selectable by DIP S.W.

2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)

3. High input voltage of 220VAC ~ 240VAC

4. High efficiency up to 87%

5. Built-in active PFC function

6. 100% output when no dimming signal input, can be used as normal power supply

7. Dimming effect smooth, no flicker

8. Protections: Short circuit, Over Load, Over Temperature

9. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on.

Package Included:

1 Piece of Euchips EUP30A-1HMC-1 30W 550-900mA 1ch 0/1-10V CC Led Driver


CE and RoHS approved
