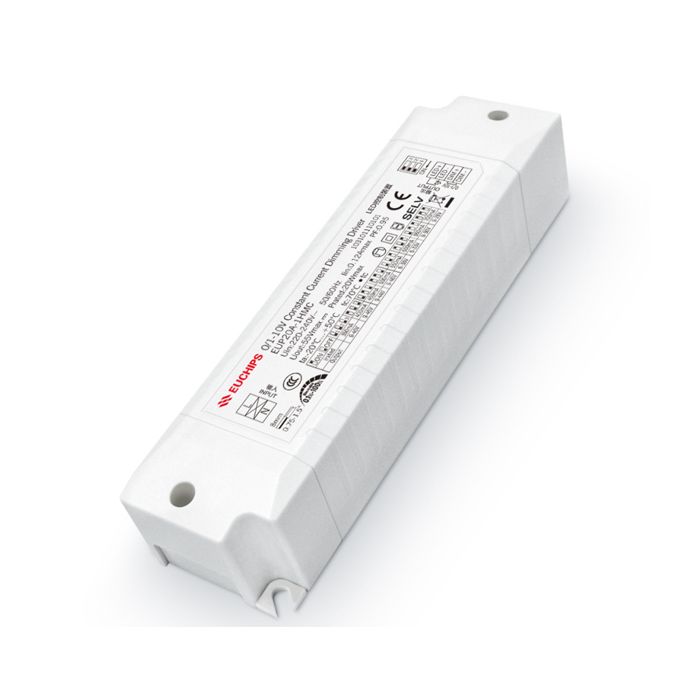

Euchips EUP20A-1HMC 20W 350-700mA 1ch 0/1-10V CC Led Driver

Short Description:

Item No.:EUP20A-1HMC

Output Power:20W

20W 350~700mA*1ch 0/1-10V CC Driver EUP20A-1HMC

EUP20A-1HMC is a constant current output mode LED driver. The output current can be easily set via

DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal ,

or adjustable resistance to achieve the smooth dimming effect.

Features

Single channel output, output current level selectable by DIP S.W.

Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)

High input voltage of 220VAC ~ 240VAC

High efficiency up to 85%

Built-in active PFC function

100% output when no dimming signal input, can be used as normal power supply

Dimming effect smooth, no flicker

Protections: Short circuit, over load, over Voltage

Suitable for indoor LED lighting application, such as down light, spot light, and so on

Package Included:

1 Piece of Euchips EUP20A-1HMC 20W 350-700mA 1ch 0/1-10V CC Led Driver


CE and RoHS approved
