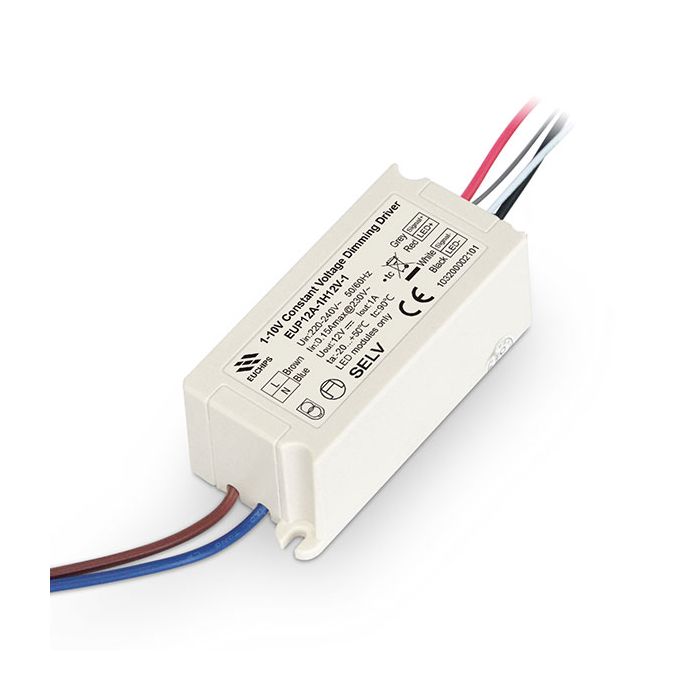

Euchips EUP12A-1H12V-1 12W 12V DC 0/1-10V CV Led Driver

€8.15
In stock
SKU
Euchips EUP12A-1H12V-1 12W 12V DC 0/1-10V CV Led Driver

For more Euchips LED Controller, pls check here: https://www.agodeu.com/euchips-led-controller.html

If you need COB Led Strip, pls check here: https://www.agodeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agodeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agodeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agodeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agodeu.com/power-adapter-power-supply.html

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Euchips EUP12A-1H12V-1 12W 12V DC 0/1-10V CV Led Driver

Short Description:

Item No.:EUP12A-1H12V-1

Input Voltage:220-240

Output Current:1A*1CH

Output Voltage:12

Output Power:12

Dim Mode:1-10V/PWM

G.W.:85

Size:78*36*29

12W 12VDC 1A*1ch 1-10V Constant Voltage LED Driver EUP12A-1H12V-1

EUP12A-1H12V-1 is a constant voltage mode output LED driver. This driver can be controlled

by external signal (1-10V active signal, adjustable resistance and PWM signal) to achieve a

smooth dimming effect.

Features

1. Single channel constant voltage output,1A Max

2. Support 3-in-1 dimming mode( 1-10V active signal, adjustable resistance and PWM signal)

3. Dimming range of 0-100%, and dimming effect smooth, no flicker

4. 100% output when no dimming signal input, can be used as normal power supply

5. Over load protection; Over temperature protection; Short circuit protection

6. IP20, suitable for MR16 and other indoor LED lighting application

Package Included:

1 Piece of Euchips EUP12A-1H12V-1 12W 12V DC 0/1-10V CV Led Driver


CE and RoHS approved
