DC 12V 24V DMX512 Decoder 3 Channels Controller for RGB LED Strip Light
Specifications
Input Power：DC12V-DC24V
Output Current：4A per channel（total current: 12A）
Output Power：144W(12V) 288W(24V)
Brightness Control ：256 scales
DMX Address：3 channels
DMX512 Standard：DMX512
Product Dimension：166×67×41（mm）
Casing Size：185×85×59（mm）
Weight：0.85lb
Description:
This DMX common controller adopts the advaned micro control unit, it receives standard
DMX-512 digital control singal and transformed it into PWM signal for driving LED;
You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.

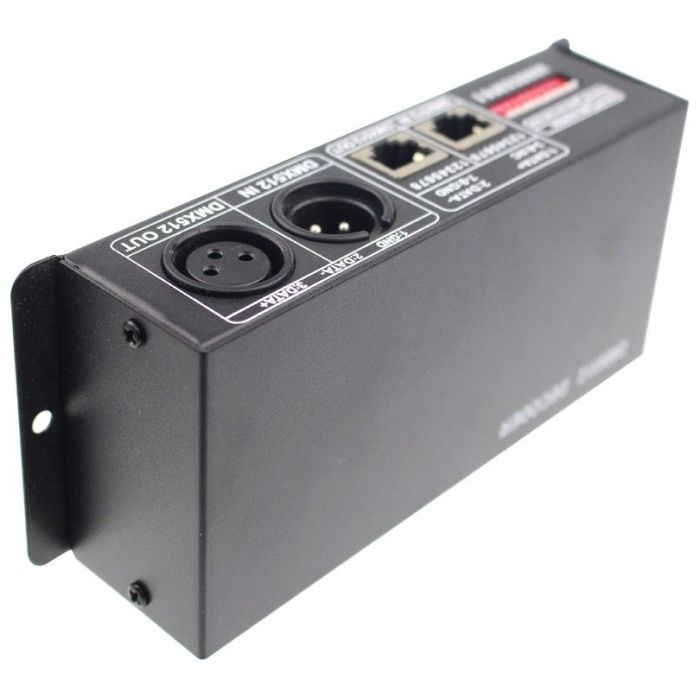

This is our new model with RJ-45 and 3-Pin XLR Jacks for DMX in and out.
You can mix and match the connections XLR in and RJ-45 Out or just use one or the other.
It also has built-in testing and stand alone features.
Simply turn on the last dip switch labeled 'fun' to enable stand alone mode (when you
don't have a DMX single or for testing). You can set the color or fade/flash modes
and adjust the speed by using different combinations of the dip switches.
Basic Functions
1. 256 scales of smooth brightness adjusting.
2. User addressable DMX interface-with easy dip-switch settings and testing modes.
3. High power output, 3 output channels.
4. DMX pass through and in/out connector for daisy chain configurations.
Includes solder on Male+Female DMX 3pin Jacks
Package Include:
1 Piece of DC 12V 24V DMX512 Decoder 3 Channels Controller for RGB LED Strip Light
CE and RoHS approved
