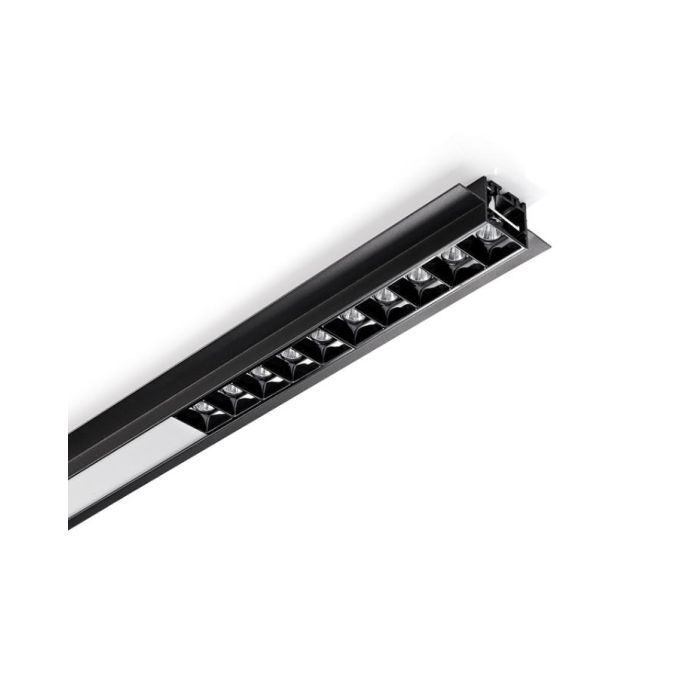

The Black Trimless Recessed LED Strip Extrusion is a great choice for architectural lighting, is designed to blend seamlessly into
any environment and provide bright, even lighting that is perfect for lighting up stairwells, hallways, and other areas of a building.
The Black LED Extrusion allows a combination of 15°, 30°, and 45° reflectors, PC frosted opal diffuser, and blind cover together for
different needs of lighting. Made of 6063-T5 aluminum material with black anodized surface treatment, anti-oxidation resistance,
and a longer lifespan than other similar products. The standard length is 1.2 meters per piece, and the max length is 2.5M per piece,
which can be cut into any size fit for your projects. There are three types of couplers available: 90°, 90° vertical, and 180°, you can use
them to reconnect the Light Extrusions for corner, upwards, and downwards applications. Ideal for being recessed in walls, and ceilings
as modern, sleek lighting design in retail stores, schools, stores, hospitals, etc.
Quick Links:
Light Modules For LS30-TS LED Extrusion
Features:
Model: LS30-TS
Material: 6063-T5 Aluminum
Surface Treatment: Black Anodized
Size: 73.6*32.5mm
Optional Diffusers: Reflectors(15°，30°，45°), PC Frosted Opal Diffuser, Blind Cover
Reflector's Length: 13.25cm
Compatible With 140mm/PC, 280mm/PC, 560mm/PC 5LEDs/Unit LED Modules(Sold Separately)
Max Power: <30W/Meter
Standard: 1.2Meter
Other Lengths Available: 2.5M
Custom Length: YES
180°, 90° Vertical And 90° Connectors Sold Separately
Installation: Recessed
Applications: For Offices, Retail Stores, Supermarkets, Shops, etc
5 Years Warranty
Includes:
1 set of LED Strip Extrusion
End Caps
Reflectors(Optional)
PC Frosted Cover(Optional)
Blind Cover(Optional)
CE and RoHS approved
