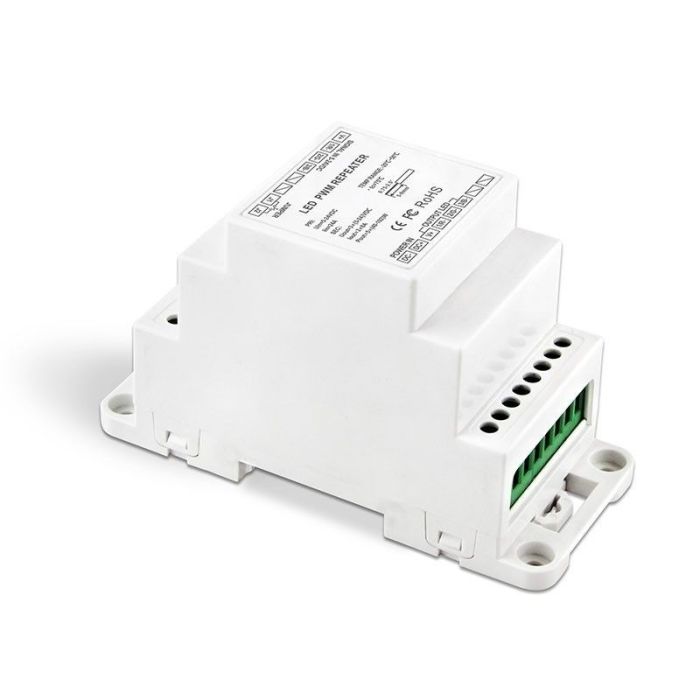

Bincolor BC-963-DIN Led Controller Power Repeater DIN Rail 3CH Amplifier

Be the first to review this product

€14.17

In stock

SKU

Bincolor BC-963-DIN Led Controller Power Repeater DIN Rail 3CH

Bincolor BC-963-DIN Led Controller Power Repeater DIN Rail 3CH Amplifier is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion,

it accepts PWM SIGNAL, unlimited quantity of power repeater to be connected theoretically. Also,

the power repeater of constant voltage model and constant current model could be connected freely,

Suitable for synchronous control of different LED lamps.

Specifications:

Model: 3CH Power Repeater（BC-963-DIN）

Input voltage: DC5V-DC24V

Max Load Current: 8A×3CH Max 24A

Output Signal: Constant Voltage PWM

Max output power:120W/288W/576W(5V/12V/24V)

Dimension: L111×W46×H66(mm)

Weight (G.W) : 130g

Feature function:

Common anode input and output.

Sustain high frequency common anode PWM input signal.

Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.

Over current protection and short circuit protection.

Optical isolation function, controller damage will not affect the repeater.

Output channels can be output independently or synchronously.

The DIN rail style facilitates the installation of large-scale projects.

Package Include:

1 Piece of Bincolor BC-963-DIN Power Repeater DIN Rail 3CH Amplifier Led Controller
Bincolor_Controller_BC_963_DIN_1

Bincolor_Controller_BC_963_DIN_2

Bincolor_Controller_BC_963_DIN_3

Bincolor_Controller_BC_963_DIN_4

Bincolor_Controller_BC_963_DIN_5

CE and RoHS approved
