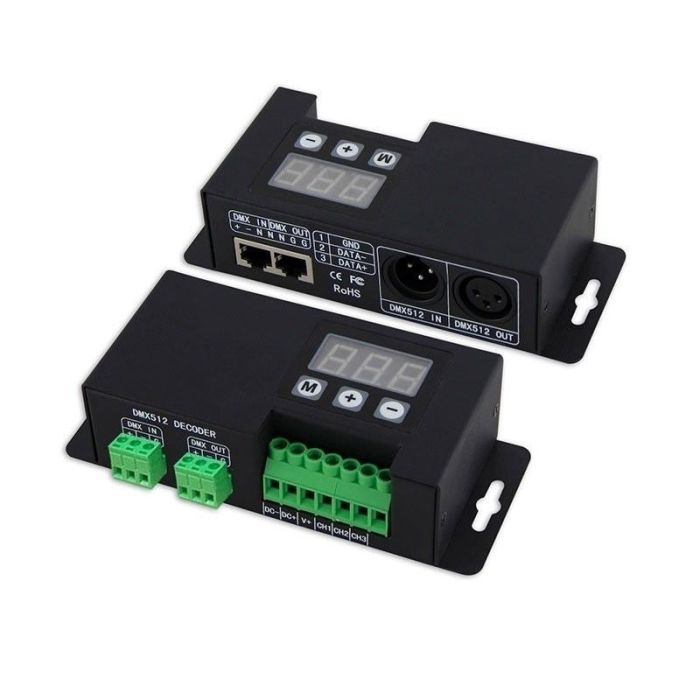

Bincolor BC-853 Dmx Master 3CH CV PWM DMX512 Led Decoder Driver Controller

Be the first to review this product

€27.40

In stock

SKU

Bincolor BC-853 Dmx Master 3CH CV PWM DMX512 Led Decoder Driver

Bincolor BC-853 Dmx Master 3CH CV PWM DMX512 Led Decoder Driver Controller is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.

Basic Features:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address.

3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.

Support master mode or slave mode;

8 color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Over current protection and short circuit protection.Wrong wiring protection at DMX prot.

Multiple DMX512 signal interface.

Specifications:

BC-853 3CH DMX512 Decoder

Product Model:3CH DMX512 Decoder

Input voltage:DC12V-DC24V

Max load current:RGB:6A×3CH

Max output power:RGB:72W×3CH(12V)/RGB:144W×3CH(24V)

Grey Scale:4096 levels×3

Input Signal:DMX512/1990

Output Signal:Constant Voltage PWM×3

Decode Channel:3CH

DMX512 socket:XLR-3R port/ RJ45 port/terminal block

Dimension:L157×W65×H40(mm)

Weight (G.W):450g

Package Included:

1 Piece of Bincolor BC-853 Dmx Master 3CH CV PWM DMX512 Led Decoder Driver Controller

Bincolor_Controller_BC_853_1

Bincolor_Controller_BC_853_2

Bincolor_Controller_BC_853_3

Bincolor_Controller_BC_853_4

Bincolor_Controller_BC_853_5

Bincolor_Controller_BC_853_6

Bincolor_Controller_BC_853_7

CE and RoHS approved
