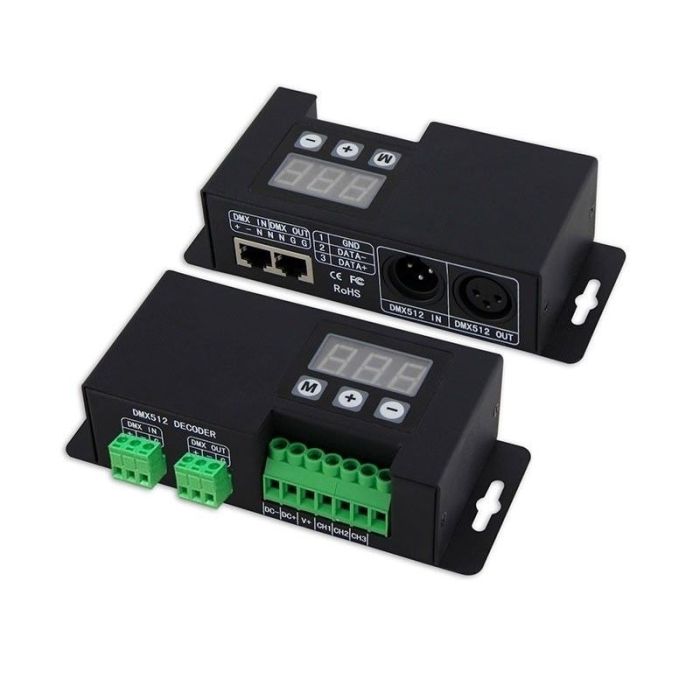

Bincolor BC-853-CC RGB 3CH Dmx Master PWM DMX512 Led Decoder Driver Controller

Be the first to review this product

€27.40

In stock

SKU

Bincolor BC-853-CC RGB 3CH Dmx Master PWM DMX512 Led Decoder

Product Style

BC-853-CC-350（350mA）

BC-853-CC-700（700mA）

Qty

Bincolor BC-853-CC RGB 3CH Dmx Master PWM DMX512 Led Decoder Driver Controller is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.

Basic Features:

Automatically adapts input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address.

3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.

Support master mode or slave mode;

8 color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Over current protection and short circuit protection.Wrong wiring protection at DMX prot.

Multiple DMX512 signal interface.

Specification

BC-853-CC 3CH DMX512 Decoder

Product Model:BC-853-CC

Input voltage:DC12V-DC48V

Max load current:350mA/load X3 or 700mA/load X3

Max output power:1-12pcs 1W LED or 1-12pcs 3W LED

Grey Scale:4096 levels×3

Input Signal:DMX512/1990

Output Signal:Constant Current PWM×3

Decode Channel:3CH

DMX512 socket:XLR-3R port/ RJ45 port/ terminal block

Dimension:L157×W65×H40(mm)

Weight (G.W):450g

Package Included:

1 Piece of Bincolor BC-853-CC RGB 3CH Dmx Master PWM DMX512 Led Decoder Driver Controller

Bincolor_Controller_BC_853_CC_1

Bincolor_Controller_BC_853_CC_2

Bincolor_Controller_BC_853_CC_3

Bincolor_Controller_BC_853_CC_4

Bincolor_Controller_BC_853_CC_5

Bincolor_Controller_BC_853_CC_6

Bincolor_Controller_BC_853_CC_7

Bincolor_Controller_BC_853_CC_8

CE and RoHS approved
